Overview
VortexMaster flowmeters accurately measure the flow of gases, liquids and steam over a wide range of temperatures. Vortex meters are ideal for use on all kinds of gases, low viscose liquids, and demineralized water, and they are ideal for direct, cost-effective steam mass flow measurement.
VortexMaster FSV430 is available with multiple communication protocols, such as HART 7, Modbus RTU, Profibus PA and FOUNDATION Fieldbus.
Optionally available:
- HMI for easy meter set up
- Integrated RTD for temperature compensation and saturated steam mass flow calculation
- Digital outputs for pulses, frequency and alarm signalization

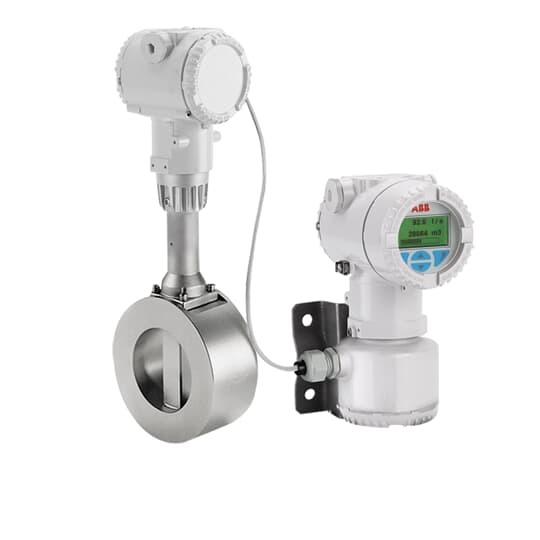

- Remote transmitter with up to 30m (98 ft.) cable length
- Stainless steel transmitter housings
Data
General specifications:
- Intuitive operation
– Easy Set-up function
– Clear text display
– Meter configuration through the front glass with closed cover - Accuracy for liquids
– +/- 0.65% of rate - Accuracy for gases and steam
– +/- 0.9% of rate - Process connection / meter sizes

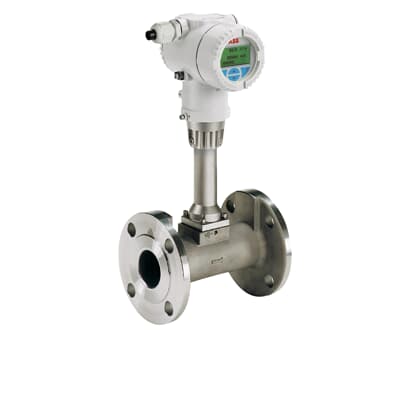

– Flange-mount design / DN 15 to 300 (1/2 to 12 in.)

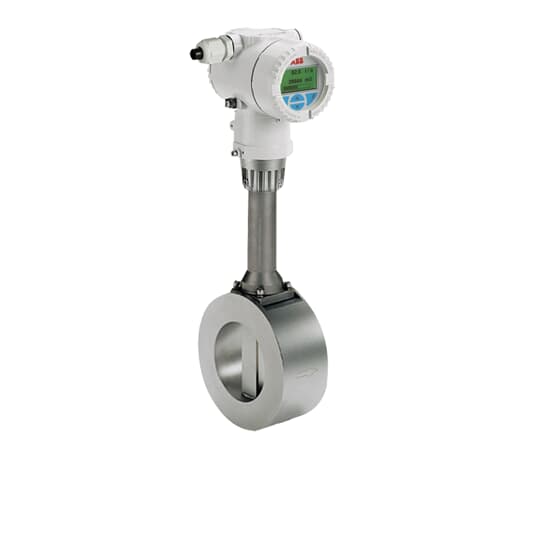

– Wafer type design / DN 25 to 150 (1 to 6 in.) - Approvals for explosion protection
– ATEX, IECEx, cFMus, NEPSI - SIL2-certified in accordance with IEC 61508
- Output / communication
– 4 to 20 mA / HART 7
– Modbus RTU-RS485 - Optional binary output
– For use as a limit switch, pulse output or frequency output - Optional input from field
– Pressure, temperature, methane content, density gas analyzer
