| Main technical parameters： | |||||||||
| Diesel engine model | QDC485G | QDC485K | QDC485P | QDC485D | QDC490G | QDC490K | QDC490P | QDC490D | |
| Diesel engine type | In-line, two-cylinder, water-cooled, four-stroke, naturally aspirated | ||||||||
| Combustion chamber type | Direct Injection | ||||||||
| Cylinder bore*stroke | 85*100 | 90*100 | |||||||
| Displacement（L） | 2.270 | 2.545 | |||||||
| Compression Ratio | 18:01 | ||||||||
| Firing sequence | 1-3-4-2 | ||||||||
| Mean Effective Pressure（kpa） | 749.6 | 705.5 | 749.6 | 754.7 | |||||
| Piston speed（m/s) | 8.0 | 5.0 | 8.0 | 5.0 | |||||
| Calibrated power/speed（kW/r/min) | 34/2400 | 20/1500 | 38/2400 | 24/1500 | |||||
| Maximum torque/speed（Nm/r/min) | 155.6/1760 | / | 173.9/1760 | / | |||||
| Fuel consumption rate（g/kWh） | ≤255.7 | ||||||||
| Oil consumption rate（g/kWh） | ≤2.04 | ||||||||
| Steady speed control | ≤8% | ≤5% | ≤8% | ≤5% | |||||
| Minimum no-load speed（r/min） | 800±50 | ||||||||
| Valve clearance | Inlet valve：0.30~0.35；Exhaust valve：0.30~0.35 | ||||||||
| Fuel supply time（CA） | 19±1 | ||||||||
| Oil pressure（MPa） | ≥0.08 | ||||||||
| Oil capacity（L） | 7 | ||||||||
| Phase of air distribution | Intake valve open. | 12±3 | |||||||
| Intake valve closed | 38±3 | ||||||||
| Exhaust door open. | 50±3 | ||||||||
| Exhaust door closed. | 14±3 | ||||||||
| Rated working condition | Exhaust temperature（℃） | ≤550 | |||||||
| Oil temperature（℃） | ≤105 | ||||||||
| Water temperature（℃） | ≤95 | ||||||||
| direction of rotation | Counterclockwise (flywheel end view) | ||||||||
| Lubrication method | Pressure + Splash Lubrication | ||||||||
| Pneumatic mode | Electric starter | ||||||||
| direction of rotation | Counterclockwise (facing the flywheel end view) | ||||||||
| Net weight（kg) | 240 | 220 | 270 | 240 | 240 | 220 | 270 | 240 | |
| Overall dimensions（Length*Width*Height）（mm） | 862*500*692 | 727*500*692 | 1116*500*692 | 877*516*820 | 862*500*692 | 737*500*692 | 1116*500*692 | 877*516*820 | |

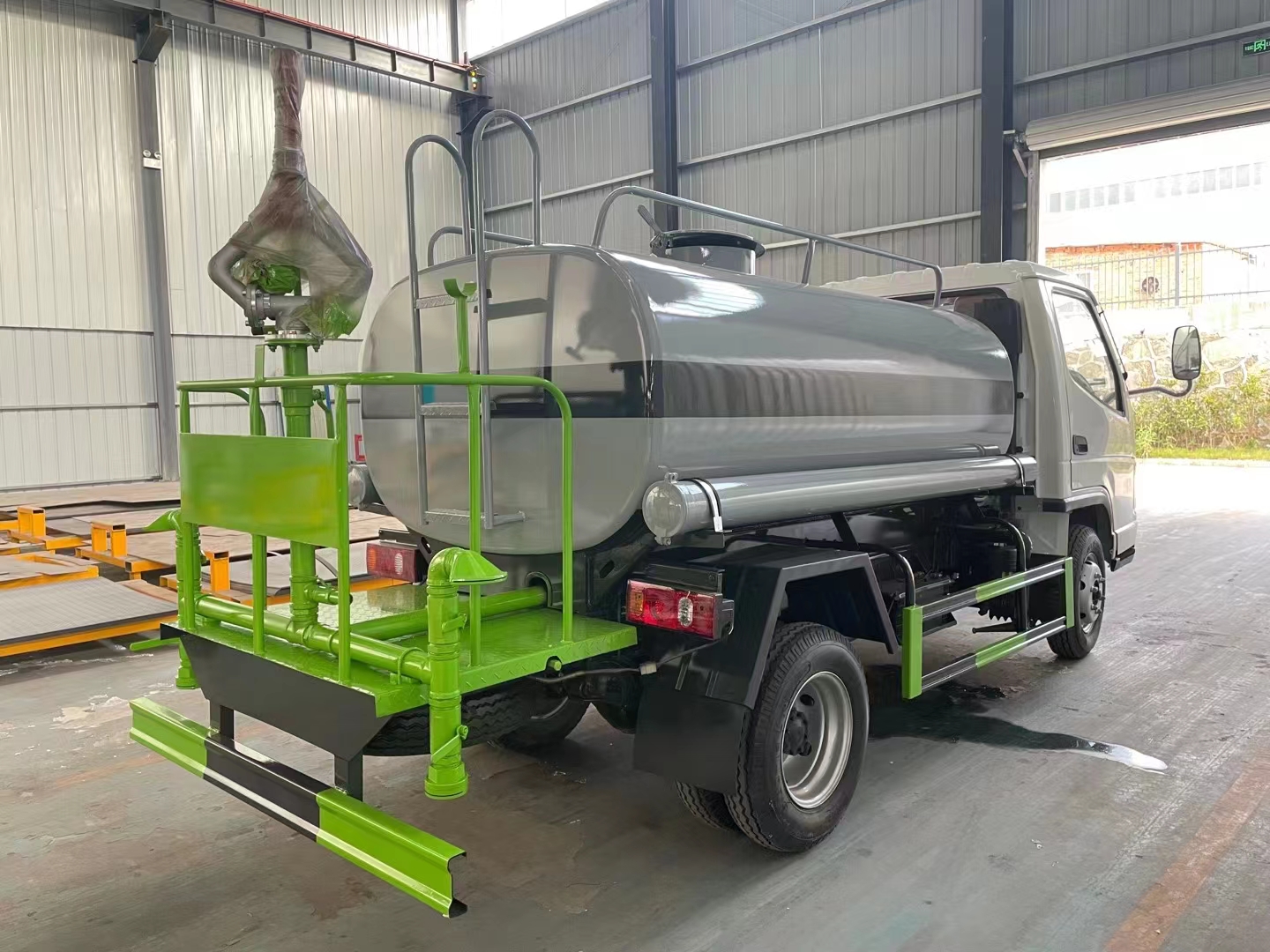

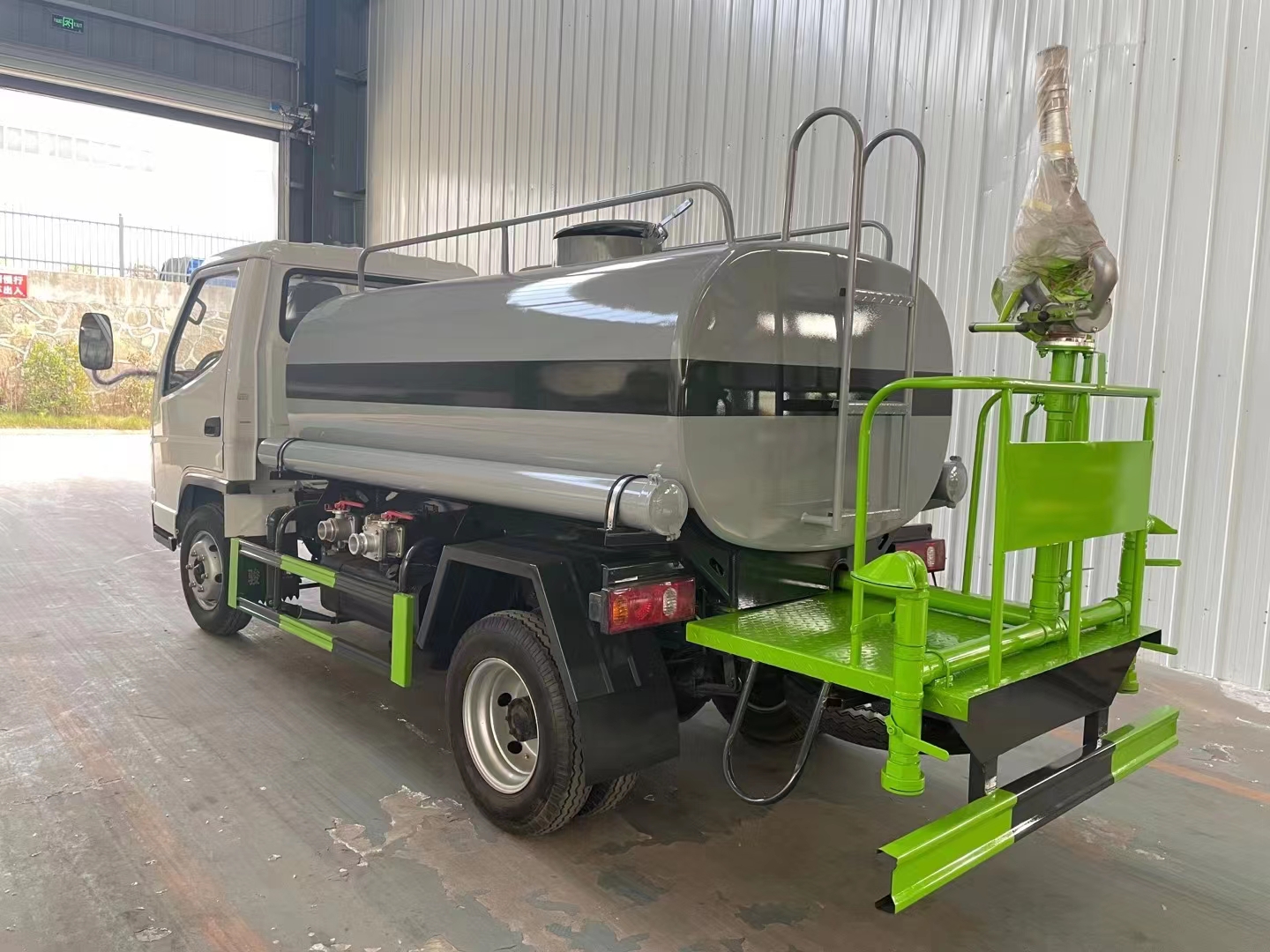

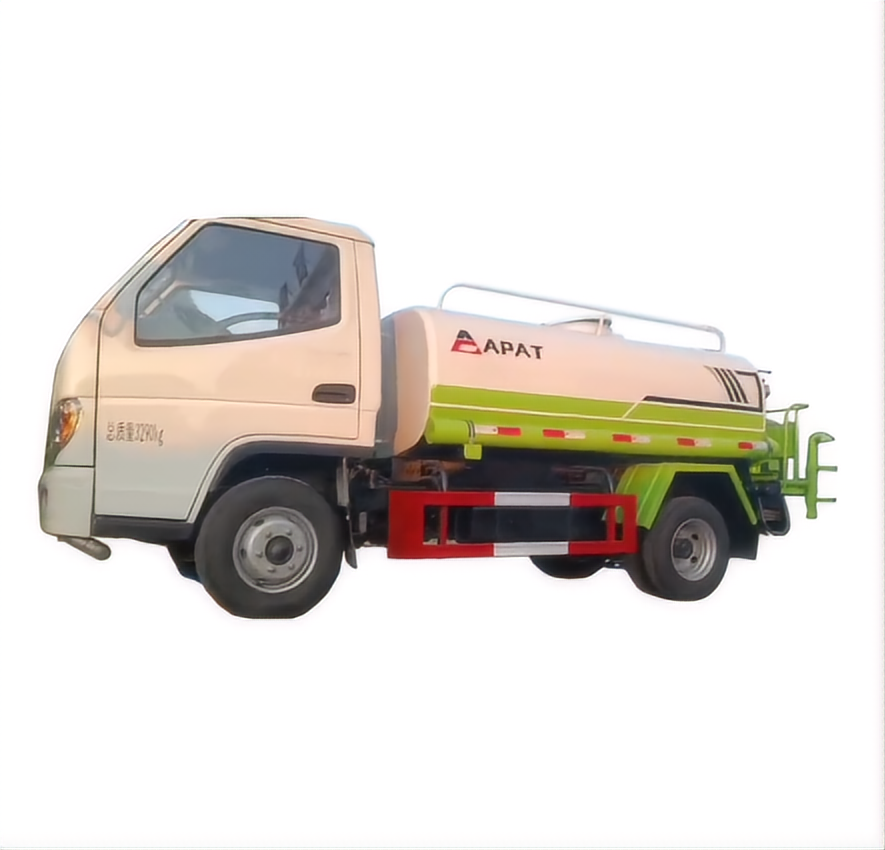

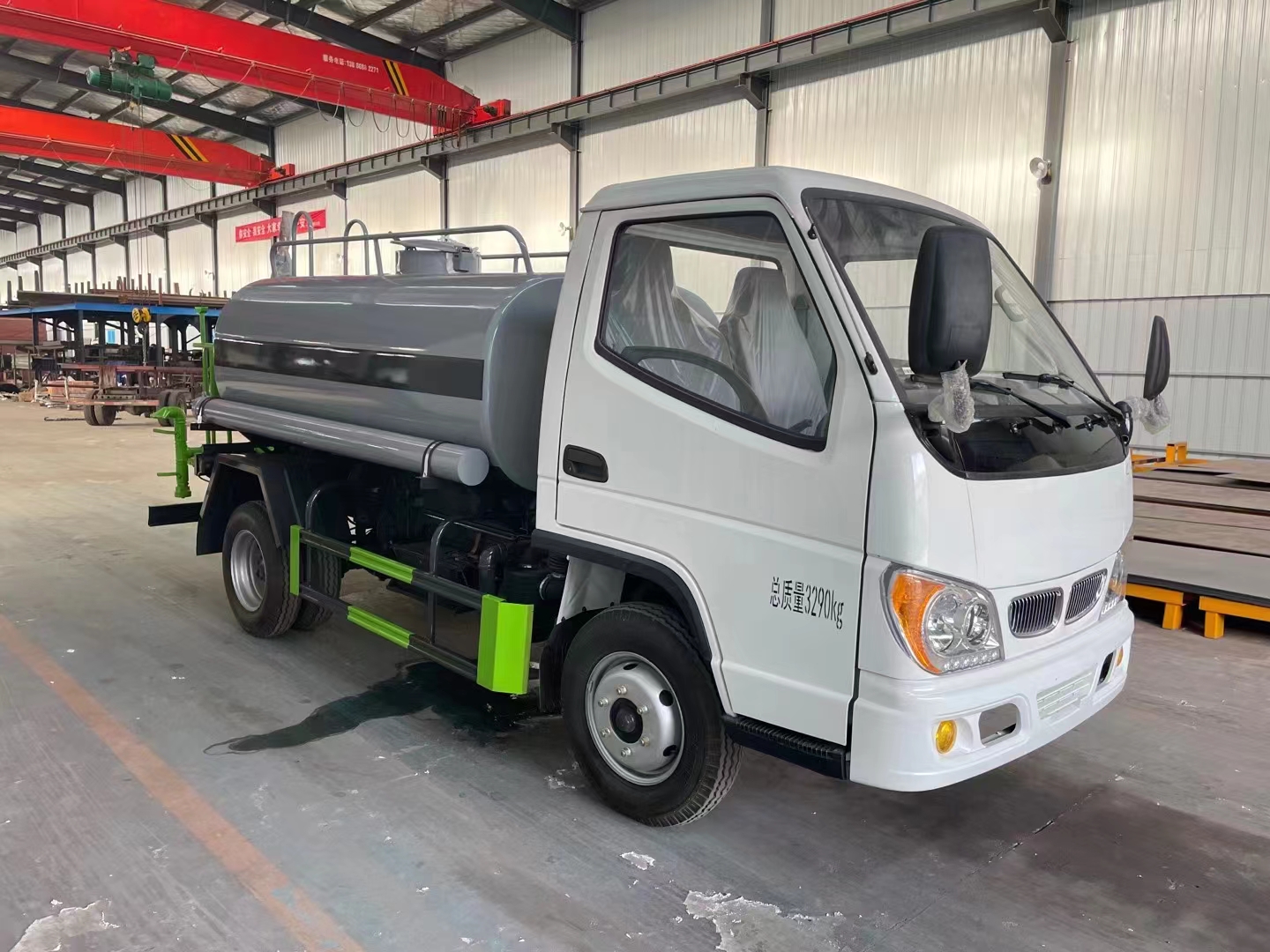

Sprinkler truck
1. Sprinkler technology: garden sanitation sprinkler adopts automatic production line tank production process, automatic welding of splicing plate, head spinning moulding, tank body once rolling moulding and other domestic advanced production technology. The tank material is made of high quality carbon steel plate.
2. Sprinkler water pump: garden sanitation sprinkler adopts imported technology of high-power special sprinkler pump, can be
Self-absorption and self-discharge, effectively prevent the pumping time is too long on the pump caused by heating and thus affecting the use of life.
Life. The use of water pumps in the process of failure (no man-made damage causes) of the pump I plant to take
Within one year with the old pump for a new pump measures.
3. Sprinkler accessories: the extraction box, ball valve are selected national stereotypes of products, good performance, reliable work, high pressure when sprinkling, ball valves, and so on.
Reliable, high pressure, high flow, low fuel consumption when sprinkling, sprinkling open the music Loudspeaker switch, good music accompanies you to work happily.
When sprinkling, open the music Loudspeaker switch, the good music accompanies you to work happily; power take-off device, this power take-off device can not be affected by the parking, can continuously and uninterruptedly to the external power output, and does not affect the vehicle’s manoeuvrability, with the use of reliable, safe and convenient and other advantages.
