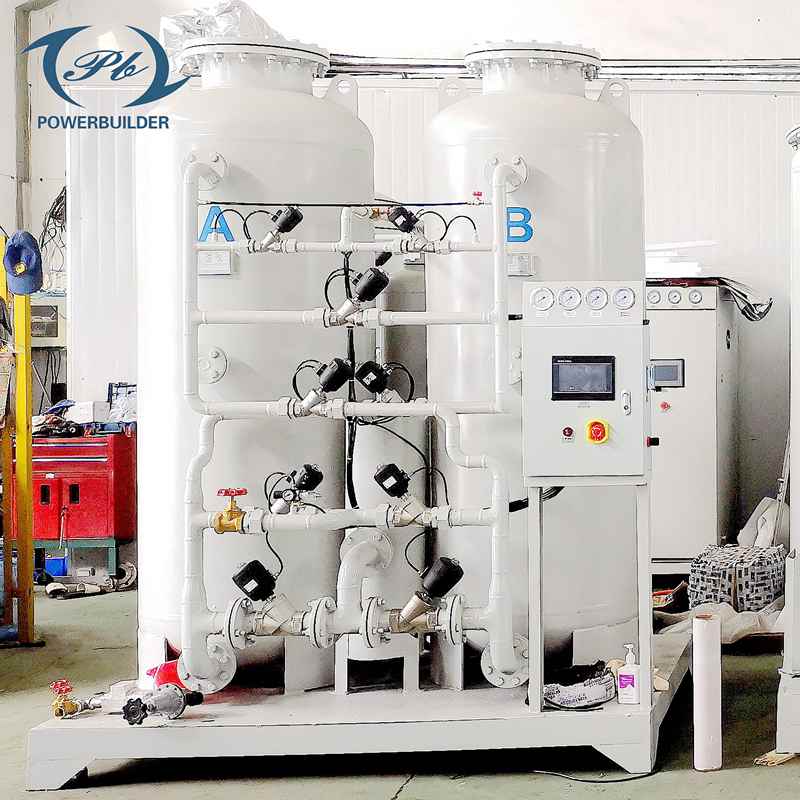

| PN5060 PSA Nitrogen Plant Technical Specification | ||||||
| lot | Item | Description /Specification | ||||
| 1 | Model/Place of Manufacture | PN5060 | ||||
| 2 | Nitrogen making principle | PSA Pressure swing adsorption PSA变压吸附(开放式结构) | ||||
| 3 | Application | Operation place | Indoor | |||
| Environment | Ambient temperature | Min -5℃/Max 50℃/ design temperature37℃ | ||||
| Ambient humidity | Min 40%RH Max90%RH | |||||
| 4 | Capacity | 60 | Nm3/hr | |||
| 5 | Nitrogen Gas Purity | ≥99.999 % Test at outlet of psa Nitrogen | ||||
| 6 | Nitrogen Purity Sensor | HT-TA261 1set | ||||
| 7 | Nitrogen Flowmeter | Japan SMC flowmeter 1 sets | ||||
| 8 | Inlet compress air pressure | 0.75 -0.99Mpa | ||||
| 9 | Inlet Oil Content | ≤0.001mg/m3 | ||||
| 10 | Residual dust | ≤0.01um | ||||
| 11 | Residual water | ≤0.069mg/m3 | ||||
| 12 | Air inlet atmospheric dew point | -15℃ | ||||
| 13 | Demand for clean compressed air | 6.5 | Nm3/min | Recommend Air compressor | 45Kw (6.5 m3/min 10 Bar ) or 37Kw (6.8m3/min 8Bar) | |
| 14 | Inlet Diameter | DN40 | ||||
| 15 | Outlet Diameter | DN25 | ||||
| 16 | Maximum inlet temperature | MAX 30 ℃ | ||||
| 17 | Allowable working pressure range | Min7.5Kgf / cm2 Max9.9Kgf / cm2 | ||||
| 18 | Carbon molecular sieve model/origin | CMS-260 | ||||
| 19 | The tower body pipe | 2 sets | ||||
| 20 | Air and nitrogen buffer tank | Piped storage tank | ||||
| 21 | Instrument Tank, silencer | PB Silencer ≤55dB(A) patent number:ZL 2015 2 0545860.3 | ||||
| 22 | Solenoid valve brand/origin | AirTAC | 7 sets | |||

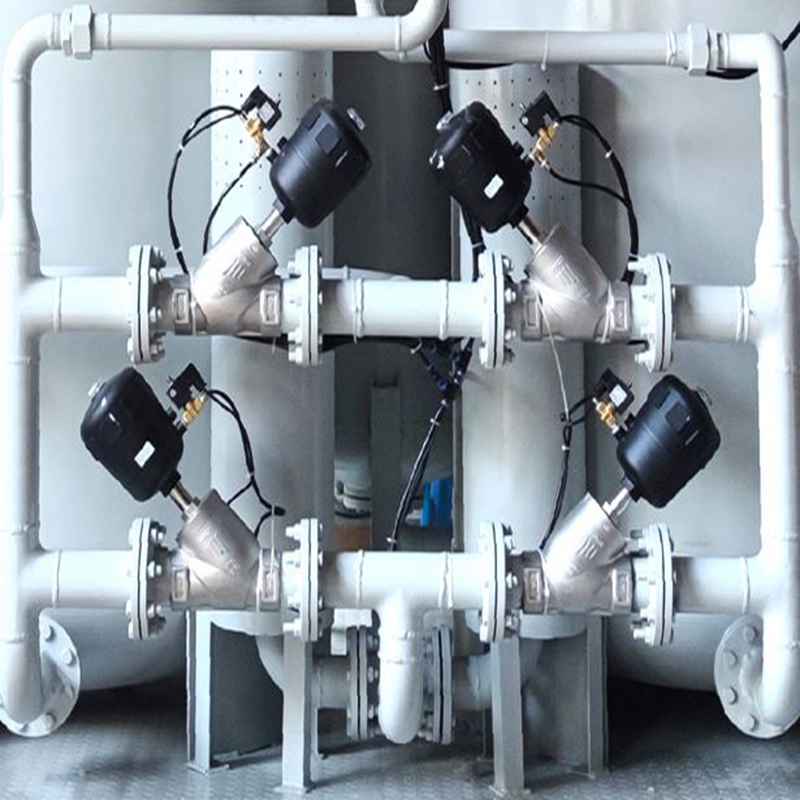

| 23 | Pneumatic valve brand/origin | PB customized | 11 sets (two for auto drain unqalified Gas) | |||
| 24 | Control System | Control Power Supply | 0.2kw/set 220V 50 HZ | |||
| PLC | Mitsubishi core integrated screen /or Siemens S7-200 Smar | |||||
| electrical box | built-in | 1 set | ||||
| touch screen | Mitsubishi core integrated screen/ MCGS | |||||
| 25 | size LxWxH (mm) / Weight:(Kg) | About: 1800*1200*2300 1500KG | ||||
| 26 | lead time | 20 days | ||||
Working Principles for PSA Nitrogen Generator
Pressure swing adsorption(PSA)nitrogen generator is an automatic equipment that uses air as material,use carbon molecular sieve as adsorbent, pressure reduction desorption principle to adsorb oxygen from the air, thereby separating nitrogen.
Main Features for PSA Nitrogen Generator
- A nitrogen generator utilizes ambient air, sourced from nature, as the raw material for nitrogen production. By supplying compressed air and power, nitrogen gas can be generated. The purity of nitrogen can be conveniently adjusted by regulating the supply of compressed air.
- The nitrogen generator is characterized by its high level of automation, enabling rapid gas production without the need for constant supervision. It can operate unattended, and nitrogen gas can be generated within a short period of 10-15 minutes after starting up the equipment.
- The equipment itself is designed with a straightforward process, requiring minimal space and consuming less energy, which leads to cost savings. To ensure the long-term durability of the molecular sieves, the snowstorm method is employed during their filling. This method prevents the pulverization of the molecular sieves caused by the impact of high-pressure airflow.
For efficient monitoring, the nitrogen generator is equipped with an imported analyzer that facilitates online inspections. This analyzer has excellent accessibility, occupies a small area, and contributes to energy and cost efficiency.
Carbon Molecular Sieve
High quality,high density, compact spring loaded, top/bottom balance, protected by a dedicated pressure sensor.
We usually use CMS-240 for purity below 99.99%
And use CMS-260 for purity of 99.999% in one step .
Standard Features
- Siemens PLC
- Customized and improved domestic valves
- 7-inch LCD display
- Taiwan AirTAC solenoid valve
- Chengdu Jiuyin Nitrogen analyzer
- SMC flowmeter
- Professional brand molecular sieve
6. Optional Features
- Remote control system
- Better valve of brand Gemu, Burkert
- Dew point analyzer
- Import Molecular Sieve
- Italian ODE solenoid valve
-Applications-
- Application of SMT industry
- Semiconductor silicon industry application
Semiconductor and integrated circuit manufacturing process atmosphere protection, cleaning,chemical recovery,etc.
- Electronic components industry application
Selective welding, puring and encapsulation with nitrogen. Scientific nitrogen inert protection has proven to be an essential step in the successful production of high quality electronic components.
- Semiconductor packing industy application
Packaging, reduction, strage with nitrogen.
- Powder metallurgy, metal processing industry
Heat treatment industry application, Steel, iron, copper, aluminum products annealing, carbonization, high temperature furnace protection, Low temperature assembly and plasma cutting of metal parts.
- Chemical industry, advanced material industry application
Nitrogen is used to create oxygen – free atmosphere in chemical process, improve the safety of production process, fluid transmission power source, etc: It can be used for nitrogen purging of pipes and vessels in the system, filling nitrogen Storage tank, gas displacement, leak detection, combustible gas protection, chemical reaction agitation, chemical fiber production protection, also used in diesel hydrogenation and catalytic reforming.
- Food and medicine industry Application
Mianly used in food packaging, food preservation, food storage, (Configurable sterilization filter), food drying and sterilization, medicine packing, medical replacement gas, medicine delivery atmosphere, etc.
- Oil and gas industry
Oil refining, container machine pipeline nitrogen-filled purge box leak detection, nitrogen injection oil recovery.
