| Technical parameters of freeze dryer(air-cooled type) | |||||||||||
| Type number |
m²/min Air handling capacity |
Compressor power |
V/50Hz Power supply |
Air nozzle Pipe diameter |
Overall dimension Length X width X height （mm) |
Kg Weight |
High pressure weight |
||||
| BL0005 | 0.8 | 0.25 | 220 | DN20(G3/4”) | 400X700X640 | 50 | 80 | ||||
| BL0010 | 1.8 | 0.35 | 220 | DN20(G3/4”) | 400X700X640 | 55 | 80 | ||||
| BL0020 | 2.8 | 0.5 | 220 | DN25(G1”) | 400X700X780 | 65 | 90 | ||||
| BL0030 | 3.8 | 0.75 | 220 | DN25(G1”) | 400X700X780 | 68 | 95 | ||||
| BL0040 | 5.5 | 1.25 | 220 | DN40(G11/2”) | 500X860X880 | 90 | 110 | ||||
| BL0060 | 6.8 | 1.5 | 220 | DN40(G11/2”) | 500X860X880 | 95 | 120 | ||||
| BL0080 | 8.8 | 2 | 220 | DN50(G2”) | 700X900X1000 | 130 | 240 | ||||
| BL0100 | 11.5 | 2.5 | 220 | DN50(G2“) | 700X900X1000 | 135 | 250 | ||||
| BL0120 | 14 | 3 | 220 | DN65(G21/2″) | 700X1000X1000 | 160 | 350 | ||||
| BL0150 | 16 | 4 | 380 | DN65(G21/2”) | 800X1000X1000 | 165 | 380 | ||||
| BL0200 | 22.8 | 5 | 380 | DN80(F3 | 700X1300X1160 | 250 | 500 | ||||
| Technical parameters of freeze dryer(water-cooled type) | |||||||||||
| Type number |
m/min Air handling capacity |
HP Compressor power |
Power supply |
m³/h Cooling water quantity |
Air nozzle Pipe diameter |
Overall dimension Length X width X heigh |
Kg Weight |
||||
| BL0120W | 14 | 3 | 220 | 2.8 | DN65(G21/2″) | 700X1000X1000 | 160 | ||||
| BL0150W | 16 | 4 | 380 | 3 | DN65(G21/2″) | 700X1000X1000 | 165 | ||||
| BL0200W | 22.8 | 5 | 380 | 3.5 | DN80(G3) | 700X1300X1160 | 250 | ||||
| BL0250W | 28.5 | 6 | 380 | 4 | DN80(G3) | 700X1300X1160 | 300 | ||||
| BL0300W | 35 | 8 | 380 | 5 | DN80(G3) | 1800X1000X1360 | 400 | ||||
| BL0400W | 45 | 10 | 380 | 7 | DN100(F4) | 2000X1000X1360 | 500 | ||||
| BL0500W | 55 | 12.5 | 380 | 9 | DN100(F4) | 2200X1100X1480 | 600 | ||||
| BL0600W | 65 | 15 | 380 | 10 | DN125(F5) | 2200X1100X1480 | 700 | ||||
| BL0800W | 85 | 20 | 380 | 12 | DN150(F6) | 2300X1300X1880 | 900 | ||||
| BL1000W | 105 | 25 | 380 | 14 | DN150(F6 | 2400X1300X2100 | 1100 | ||||
| BL1200W | 120 | 30 | 380 | 16 | DN200(F8) | 2600X1300X1600 | 1300 | ||||
| BL1600W | 160 | 40 | 380 | 18 | DN200(F8) | 2800X1500X1800 | 1650 | ||||
| BI2000W | 200 | 50 | 380 | 24 | DN250(F10 | 3400X1600X1900 | 2000 | ||||
| BL2500W | 250 | 60 | 380 | 24 | DN250(F10) | 3800X1700X2000 | 2600 | ||||
| BL3000W | 300 | 70 | 380 | 35 | DN300(F12 | 4000X1800X2200 | 3500 | ||||
| BL3600W | 360 | 80 | 380 | 40 | DN300(F12 | 4200X1900X2000 | 4500 | ||||

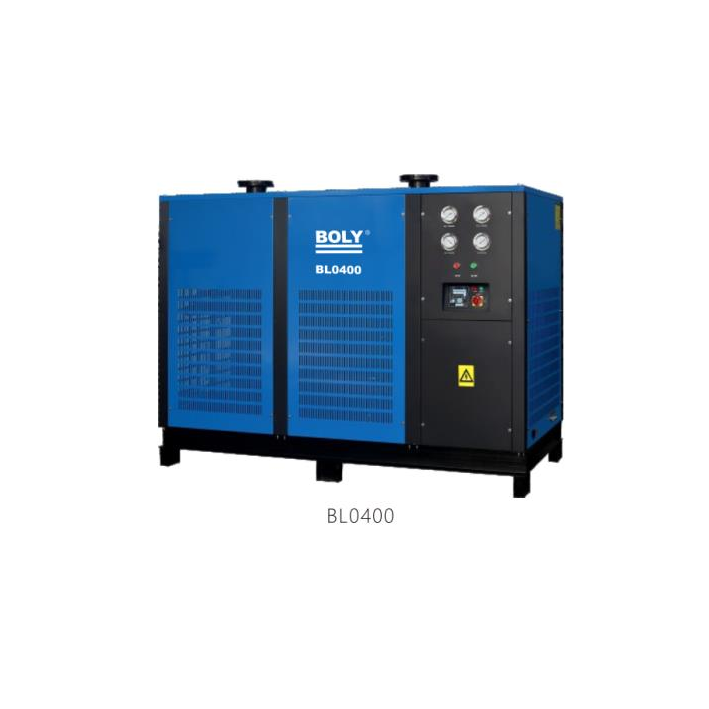

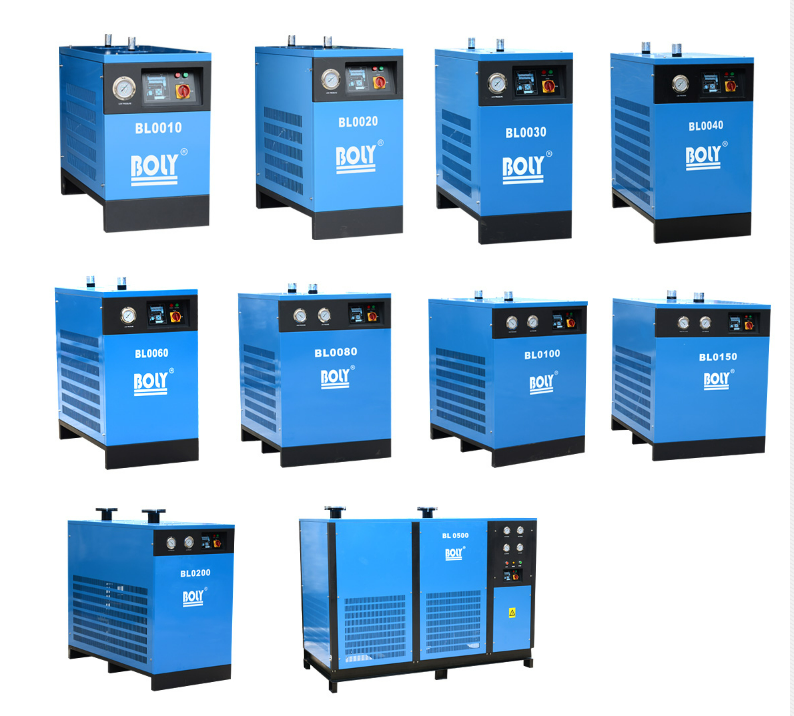

Refrigeration Dryer BL Series (Air Cooling/Water Cooling Type)
You Need Dry Compressed Air
Usually the compressed air entering the air network contains 100% water vapor. When the
air is cooled, the vapor will condense and damage not only your compressed air system,
but also your final product.

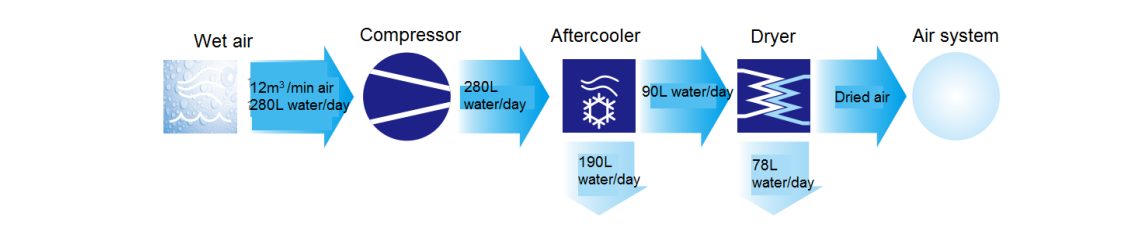

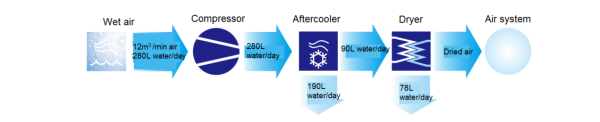

If a dryer is not installed, 90L of water will enter your compressed air system every day.
BOLY compressed air dryer can make the moisture in the compressed air completely
disappear. The dry compressed air can ensure the smooth operation of the compressed
air system and the efficient production. The BOLY series refrigeration dryer and
adsorption dryer provide you with different dew point temperature and dry compressed air.
