PSA Nitrogen Generator / Psa Nitrogen Generation System : 60Nm3/H, 99.99% Purity, For Food, Metallurgy, Chemical

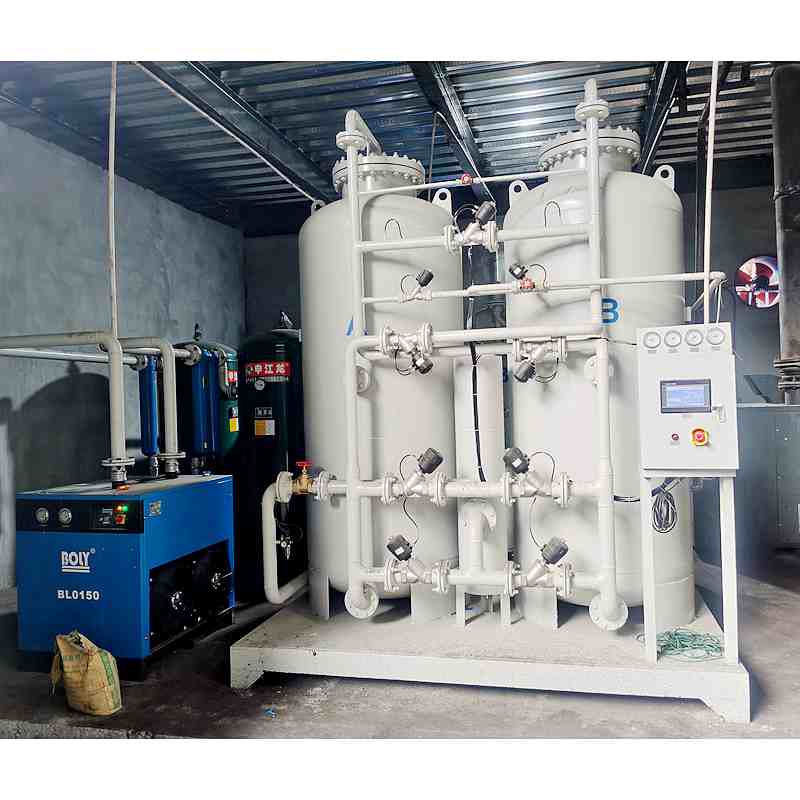

Description of 99.99% Purity 60Nm3/H PSA Nitrogen Generator Food, metallurgy, chemical

industry applicable



We have been engaged in the assembly of PSA nitrogen generators and oxygen generators in our factory for 15 years, providing approximately 400 sets of PSA nitrogen generators and oxygen generators for domestic and international customers each year, including production, and debugging.



In collaboration with Burkert Valves, we have customized our own double-acting pneumatic valve. Through the design of top and middle pressure equalization,and airflow orifice plates, we continuously optimize and reduce the air consumption ratio of the equipment, thus achieving energy savings. The energy consumption ratio of our equipment has reached the highest level in China. And through our patented silencer, our device noise is controlled to less than 55 db.



In terms of process flow, we have cutting, welding, assembly, filling of molecular sieves, automatic rust removal, spraying, and complete procedures and supporting equipment for commissioning.



In the supply chain aspect, we provide first-line brands such as Atlas Copco, Ingersoll Rand, GDK, Liutech, Bolaite, Hanbell, and BK for air compressors, and provide Boly, Atlas Copco, and Liutech refrigerated dryers, as well as Anshan Jiapeng and Anqing Bailian boosters.

We can provide supporting equipment and accessories.



Currently, our company’s products are aimed at end-users and distributors worldwide. We provide customized remote systems, color customization, display interface customization, and many other OEM services. And we also provide ASME standard equipment and pressure tanks for USA and Australian market.



For specific selection, please contact our customer manager. We hope to become your trusted long-term partner.





PN4060 PSA Nitrogen Plant Technical Specification
lot Item Description /Specification
1 Model/Place of Manufacture PN4060
2 Nitrogen making principle PSA Pressure swing adsorption PSA变压吸附(开放式结构)
3 Application Operation place Indoor
Environment Ambient temperature Min -5℃/Max 50℃/ design temperature37℃
Ambient humidity Min 40%RH Max90%RH
4 Capacity 60 Nm3/hr
5 Nitrogen Gas Purity ≥99.99 % Test at outlet of psa Nitrogen
6 Nitrogen Purity Sensor HT-TA261 1set
7 Nitrogen Flowmeter Japan SMC flowmeter 1 sets
8 Inlet compress air pressure 0.75 -0.99Mpa
9 Inlet Oil Content ≤0.001mg/m3
10 Residual dust ≤0.01um
11 Residual water ≤0.069mg/m3
12 Air inlet atmospheric dew point -15℃
13 Demand for clean compressed air 5 Nm3/min Recommend Air compressor 45Kw(6.5 m3/min 10Bar ) Or 37Kw (4.7m3/min 10Bar ) or 30Kw (5.0m3/min 8Bar)
14 Inlet Diameter DN40
15 Outlet Diameter DN25
16 Maximum inlet temperature MAX 30 ℃
17 Allowable working pressure range Min7.5Kgf / cm2 Max9.9Kgf / cm2
18 Carbon molecular sieve model/origin CMS-240
19 The tower body pipe 2 sets
20 Air and nitrogen buffer tank Piped storage tank
21 Instrument Tank, silencer PB Silencer ≤55dB(A) patent number:ZL 2015 2 0545860.3
22 Solenoid valve brand/origin AirTAC 7 sets
23 Pneumatic valve brand/origin PB-Customized 11 Sets (two for auto drain unqalified Gas)

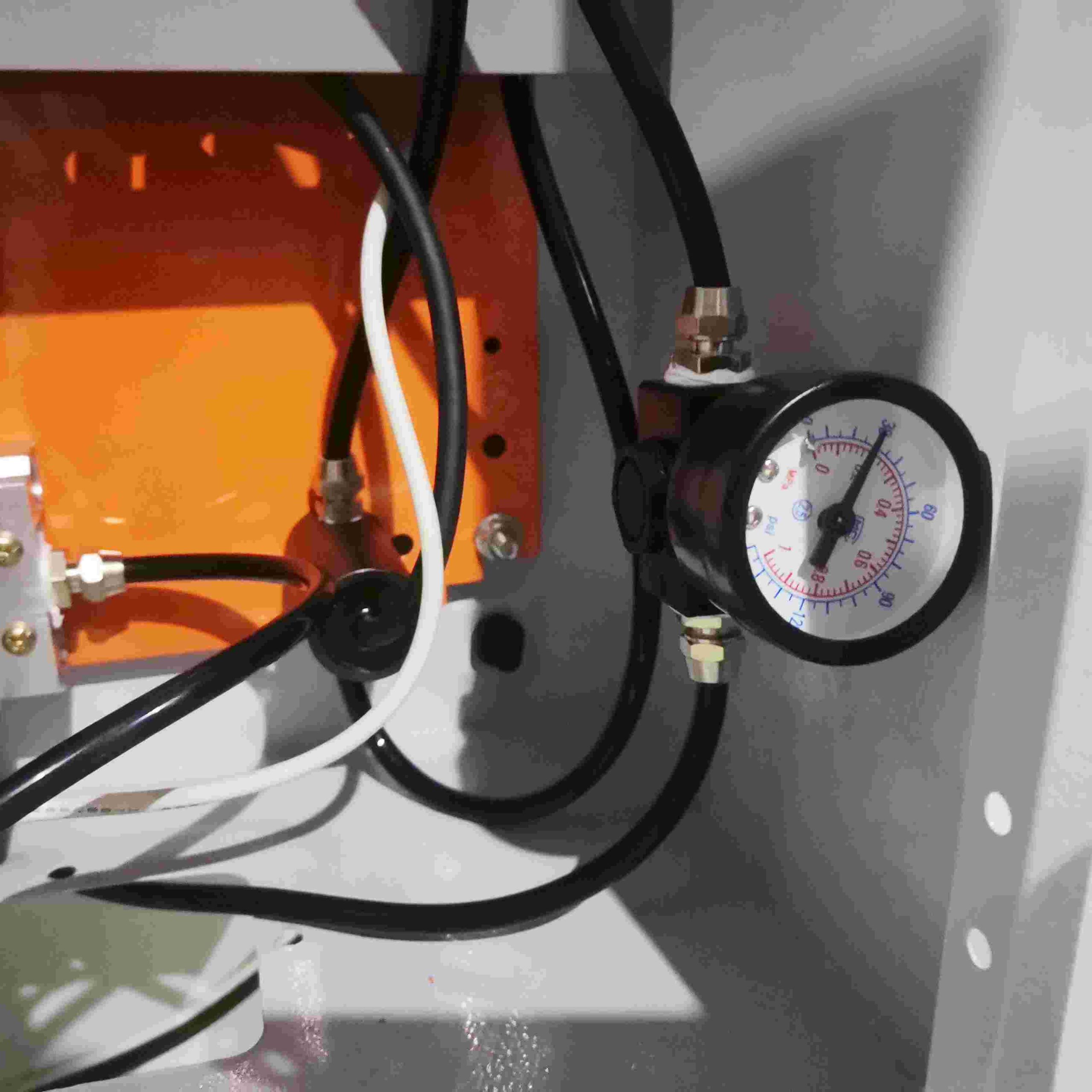

24 Control System Control Power Supply 0.2kw/set 220V 50 HZ
PLC Mitsubishi core integrated screen /or Siemens S7-200 Smart
electrical box built-in 1 set
touch screen Mitsubishi core integrated screen/ MCGS
25 size LxWxH (mm) / Weight:(Kg) About:1800*1000*2300mm 1200 kg
26 Price 含税含运费 交期20天







Working Principles for PSA Nitrogen Generator

An automatic nitrogen generator based on the Pressure Swing Adsorption (PSA) technology is designed to produce nitrogen by utilizing air as the source material. The system employs carbon molecular sieve as the adsorbent and relies on the principle of pressure reduction desorption to selectively remove oxygen from the air, resulting in the separation of nitrogen. This process ensures the efficient and reliable generation of high-purity nitrogen gas.

Main Features for PSA Nitrogen Generator

  • Raw material air is taken from nature. Nitrogen can be produced by supplying compressed air and power.
  • Nitrogen purity can be adjusted conveniently and be produced by supplying compressed air
  • The equipment is highly automated, produces gas quickly, and can be unattended. Nitrogen can be produced within 10-15 minutes of startup.
  • The equipment has a simplified process, compact footprint, low energy consumption, and cost-effectiveness.
  • To ensure the long-term usability of molecular sieves and prevent their pulverization due to high-pressure airflow impact, a snowstorm filling method is employed during the molecular sieve filling process.
  • The imported analyzer used for online inspection offers easy accessibility, occupies minimal space, consumes low energy, and is cost-effective.

Carbon Molecular Sieve

Our spring-loaded system offers exceptional quality, high density, and compact design. It features a top/bottom balance mechanism and is equipped with a dedicated pressure sensor for enhanced protection.

When aiming for a purity level below 99.99%, our preferred choice is the CMS-240 system.

For applications requiring an even higher purity level of 99.999%, we rely on the CMS-260 system, which achieves this level in a single step.

Standard Features

  • Siemens PLC
  • Customized and improved domestic valves
  • 7-inch LCD display
  • Taiwan AirTAC solenoid valve
  • Chengdu Jiuyin Nitrogen analyzer
  • SMC flowmeter
  • Professional brand molecular sieve

Optional Features

  • Remote control system
  • Better valve of brand Gemu, Burkert
  • Dew point analyzer
  • Import Molecular Sieve
  • Italian ODE solenoid valve

-Applications-

  • Application of SMT Industry in Semiconductor Silicon Manufacturing

The SMT industry plays a crucial role in various applications within the semiconductor silicon manufacturing process. It encompasses activities such as atmosphere protection, cleaning, and chemical recovery, among others. These processes are vital for ensuring the efficient and high-quality production of semiconductor materials.

  • Application of SMT Industry in the Electronic Components Manufacturing

In the electronic components industry, the SMT industry finds significant application in selective welding, purging, and encapsulation processes using nitrogen. The use of scientific nitrogen inert protection has been proven essential in achieving successful production of high-quality electronic components. It helps prevent oxidation and contamination, ensuring the integrity and reliability of the components.

  • Application of SMT Industry in Semiconductor Packaging

    The SMT industry also plays a crucial role in semiconductor packaging, including reduction and storage processes that involve the use of nitrogen. Nitrogen is utilized for packaging purposes to create a controlled and inert environment, preventing oxidation and moisture damage. This helps to preserve the quality and longevity of the semiconductor devices during storage and transportation.

  • Powder metallurgy, metal processing industry

Heat treatment industry application, Steel, iron, copper, aluminum products annealing, carbonization, high temperature furnace protection, Low temperature assembly and plasma cutting of metal parts.

  • Chemical industry, advanced material industry application

Nitrogen is used to create oxygen – free atmosphere in chemical process, improve the safety of production process, fluid transmission power source, etc: It can be used for nitrogen purging of pipes and vessels in the system, filling nitrogen Storage tank, gas displacement, leak detection, combustible gas protection, chemical reaction agitation, chemical fiber production protection, also used in diesel hydrogenation and catalytic reforming.

  • Oil and gas industry

­Oil refining, container machine pipeline nitrogen-filled purge box leak detection, nitrogen injection oil recovery.

  • Food and medicine industry Application

Mianly used in food packaging, food preservation, food storage, (Configurable sterilization filter), food drying and sterilization, medicine packing, medical replacement gas, medicine delivery atmosphere, etc.



Item No. Capacity Purity Size mm Inlet Diameter Outlet Diameteer Weight Kg Power
PN4005 5Nm3/H ≥99.99% 1200*850*1500 DN15 DN15 300 AC220V/0.2KW
PN4010 10Nm3/H ≥99.99% 1200*900*1900 DN15 DN15 500 AC220V/0.2Kw
PN4020 20Nm3/H ≥99.99% 1450*900*1900 DN25 DN15 600 AC220V/0.2Kw
PN4030 30Nm3/H ≥99.99% 1450*900*2250 DN32 DN15 700 AC220V/0.2Kw
PN4040 40Nm3/H ≥99.99% 1600*1100*1950 DN32 DN15 800 AC220V/0.2Kw
PN4050 50Nm3/H ≥99.99% 1700*1100*2200 DN40 DN15 1000 AC220V/0.2Kw
PN4060 60Nm3/H ≥99.99% 1800*1000*2300 DN40 DN25 1200 AC220V/0.2Kw
PN4070 70Nm3/H ≥99.99% 1800*1000*2300 DN40 DN25 1800 AC220V/0.2Kw
PN4080 80Nm3/H ≥99.99% 1800*1000*2300 DN40 DN25 1900 AC220V/0.2Kw
PN4100 100Nm3/H ≥99.99% 1800*1300*2450 DN40 DN25 2500 AC220V/0.2Kw
PN4120 120Nm3/H ≥99.99% 1800*1300*2450 DN40 DN25 2600 AC220V/0.2Kw
PN4150 150Nm3/H ≥99.99% 2000*1300*2450 DN40 DN25 2900 AC220V/0.2Kw
PN4200 200Nm3/H ≥99.99% 2200*1500*2650 DN50 DN40 3400 AC220V/0.2Kw
PN4250 250Nm3/H ≥99.99% 2500*1600*2680 DN50 DN40 3800 AC220V/0.2Kw
PN4300 300Nm3/H ≥99.99% 2500*1600*2900 DN50 DN40 5000 AC220V/0.2Kw
PN4350 350Nm3/H ≥99.99% 2500*1600*2900 DN80 DN50 5500 AC220V/0.2KW
PN4400 400Nm3/H ≥99.99% 3000*2000*3750 DN80 DN50 7500 AC220V/0.2Kw

Description

Technical indicators

  • Capacity Range : 2~2000Nm3/H
  • Purity Range : 95%~99.9999%
  • Outlet Pressure :0~6Bar or 0~ 8Bar
  • Booster outlet pressure range : 10 to 200Bar
  • Service Life 8-10 years as long as regular maintenance
