| PN4020 PSA Nitrogen Plant Technical Specification | ||||||
| lot | Item | Description /Specification | ||||
| 1 | Model/Place of Manufacture | PN4020 | ||||
| 2 | Nitrogen making principle | PSA Pressure swing adsorption PSA变压吸附(开放式结构) | ||||
| 3 | Application | Operation place | Indoor | |||
| Environment | Ambient temperature | Min -5℃/Max 50℃/ design temperature37℃ | ||||
| Ambient humidity | Min 40%RH Max90%RH | |||||
| 4 | Capacity | 20 | Nm3/hr | |||
| 5 | Nitrogen Gas Purity | ≥99.99 % Test at outlet of psa Nitrogen | ||||
| 6 | Nitrogen Purity Sensor | HT-TA261 1set | ||||
| 7 | Nitrogen Flowmeter | Japan SMC flowmeter 1 sets | ||||
| 8 | Inlet compress air pressure | 0.75 -0.99Mpa | ||||
| 9 | Inlet Oil Content | ≤0.001mg/m3 | ||||
| 10 | Residual dust | ≤0.01um | ||||
| 11 | Residual water | ≤0.069mg/m3 | ||||
| 12 | Air inlet atmospheric dew point | -15℃ | ||||
| 13 | Demand for clean compressed air | 1.67 | Nm3/min | Recommend Air compressor | 15Kw (2.1 m3/min 10Bar ) or 15Kw (2.4m3/min 8Bar) | |
| 14 | Inlet Diameter | DN25 | ||||
| 15 | Outlet Diameter | DN15 | ||||
| 16 | Maximum inlet temperature | MAX 30 ℃ | ||||
| 17 | Allowable working pressure range | Min7.5Kgf / cm2 Max9.9Kgf / cm2 | ||||
| 18 | Carbon molecular sieve model/origin | CMS-240 | ||||
| 19 | The tower body pipe | 2 sets | ||||
| 20 | Air and nitrogen buffer tank | Piped storage tank | ||||
| 21 | Instrument Tank, silencer | PB Silencer ≤55dB(A) patent number:ZL 2015 2 0545860.3 | ||||
| 22 | Solenoid valve brand/origin | AirTAC | 7 sets | |||
| 23 | Pneumatic valve brand/origin | PB-Customized | 11 Sets (two for auto drain unqalified Gas) | |||
| 24 | Control System | Control Power Supply | 0.2kw/set 220V 50 HZ | |||
| PLC | Mitsubishi core integrated screen /or Siemens S7-200 Smart | |||||
| electrical box | built-in | 1 set | ||||
| touch screen | Mitsubishi core integrated screen/ MCGS | |||||
| 25 | size LxWxH (mm) / Weight:(Kg) | About:1450*900*1900mm 600 kg | ||||
| 26 | Price | 含税含运费 交期20天 | ||||

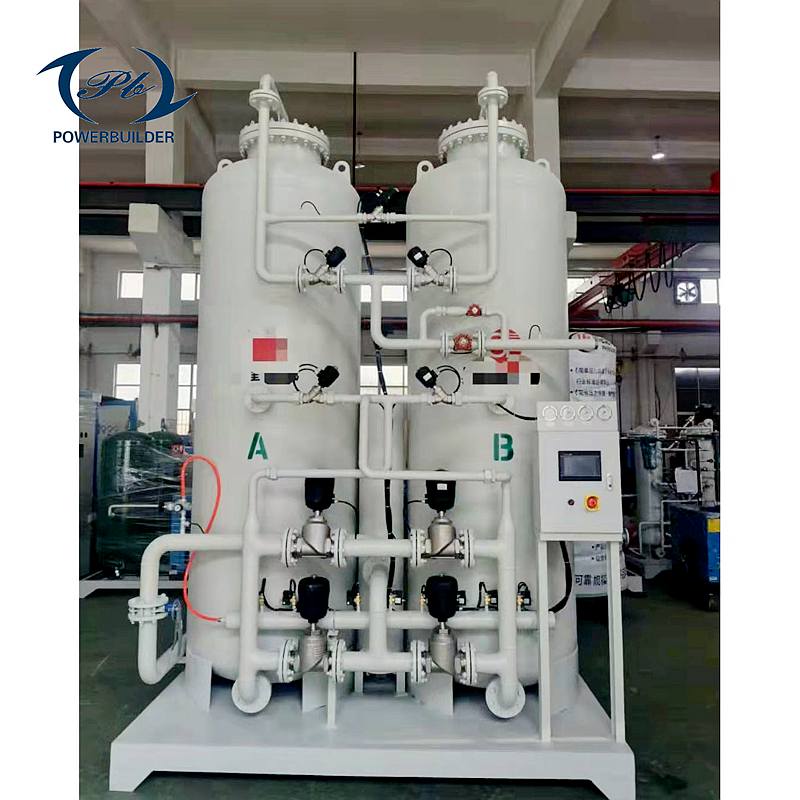

A nitrogen generator operates using the principle of Pressure Swing Adsorption (PSA) technology. It comprises two main adsorption towers and a set of control valves.
The process commences by introducing compressed air into one of the adsorption towers. Within the tower, a specialized adsorbent material, such as carbon molecular sieve, selectively adsorbs oxygen molecules while allowing nitrogen molecules to pass through.
Once the adsorption capacity of the tower for oxygen reaches saturation, the control valves switch the airflow to the second tower. Simultaneously, the first tower undergoes a desorption phase where the pressure is reduced, causing the adsorbent to release the previously adsorbed oxygen.
The released oxygen is then expelled from the system, while the second tower starts adsorbing oxygen from the incoming air stream. This cyclic process ensures a continuous supply of high-purity nitrogen.
By precisely regulating the airflow and pressure switching, the nitrogen generator achieves efficient separation and production of nitrogen with the desired purity level. This PSA-based principle enables reliable and cost-effective nitrogen generation across various applications.
Main Features for PSA Nitrogen Generator
- Raw material air is taken from nature. Nitrogen can be produced by supplying compressed air and power.
- Nitrogen purity can be adjusted conveniently and be produced by supplying compressed air
- The equipment is highly automated, produces gas quickly, and can be unattended. Nitrogen can be produced within 10-15 minutes of startup.
- The equipment process is simple, occupies a small area, consumes less energy and costs.
- Molecular sieves are filled by snowstorm method to avoid the pulverization of molecular sieves caused by avoid the pulverization of molecular sieves caused by high-pressure airflow impact and ensure the long-term use of molecular sieves.
- On-line inspection of imported analyzer with high access is simple, occupies a small area, consumes less energy,and costs.
Carbon Molecular Sieve
Our nitrogen generator is designed to deliver exceptional performance with high quality, compactness, and efficiency. It incorporates spring-loaded valves for optimal balance and is equipped with a dedicated pressure sensor for added protection.
To achieve a purity level below 99.99%, we employ the CMS-240 adsorbent material. This proprietary carbon molecular sieve selectively removes oxygen molecules while allowing nitrogen to pass through, resulting in the desired purity.
For applications requiring an even higher purity of 99.999% in a single step, we utilize the CMS-260 adsorbent material. This advanced carbon molecular sieve offers superior adsorption capabilities, ensuring the production of ultra-pure nitrogen.
By integrating these cutting-edge components and adsorbent materials, our nitrogen generator guarantees reliable and efficient nitrogen production, precisely tailored to meet stringent purity requirements.
Standard Features
- Siemens PLC
- Customized and improved domestic valves
- 7-inch LCD display
- Taiwan AirTAC solenoid valve
- Chengdu Jiuyin Nitrogen analyzer
- SMC flowmeter
- Professional brand molecular sieve
Optional Features
- Remote control system
- Better valve of brand Gemu, Burkert
- Dew point analyzer
- Import Molecular Sieve
- Italian ODE solenoid valve
-Applications-
- Application of SMT industry
- Semiconductor silicon industry application
Semiconductor and integrated circuit manufacturing process atmosphere protection, cleaning,chemical recovery,etc.
- Electronic components industry application
Selective welding, puring and encapsulation with nitrogen. Scientific nitrogen inert protection has proven to be an essential step in the successful production of high quality electronic components.
- Semiconductor packing industy application
Packaging, reduction, strage with nitrogen.
- Powder metallurgy, metal processing industry
Heat treatment industry application, Steel, iron, copper, aluminum products annealing, carbonization, high temperature furnace protection, Low temperature assembly and plasma cutting of metal parts.
- Chemical industry, advanced material industry application
Nitrogen is used to create oxygen – free atmosphere in chemical process, improve the safety of production process, fluid transmission power source, etc: It can be used for nitrogen purging of pipes and vessels in the system, filling nitrogen Storage tank, gas displacement, leak detection, combustible gas protection, chemical reaction agitation, chemical fiber production protection, also used in diesel hydrogenation and catalytic reforming.
- Oil and gas industry
Oil refining, container machine pipeline nitrogen-filled purge box leak detection, nitrogen injection oil recovery.
- Food and medicine industry Application
Mianly used in food packaging, food preservation, food storage, (Configurable sterilization filter), food drying and sterilization, medicine packing, medical replacement gas, medicine delivery atmosphere, etc.
