PSA Nitrogen Generator/ Industrial Nitrogen Generator: 400Nm3/H, 99.99% Purity, For Food, Metallurgy, Chemical

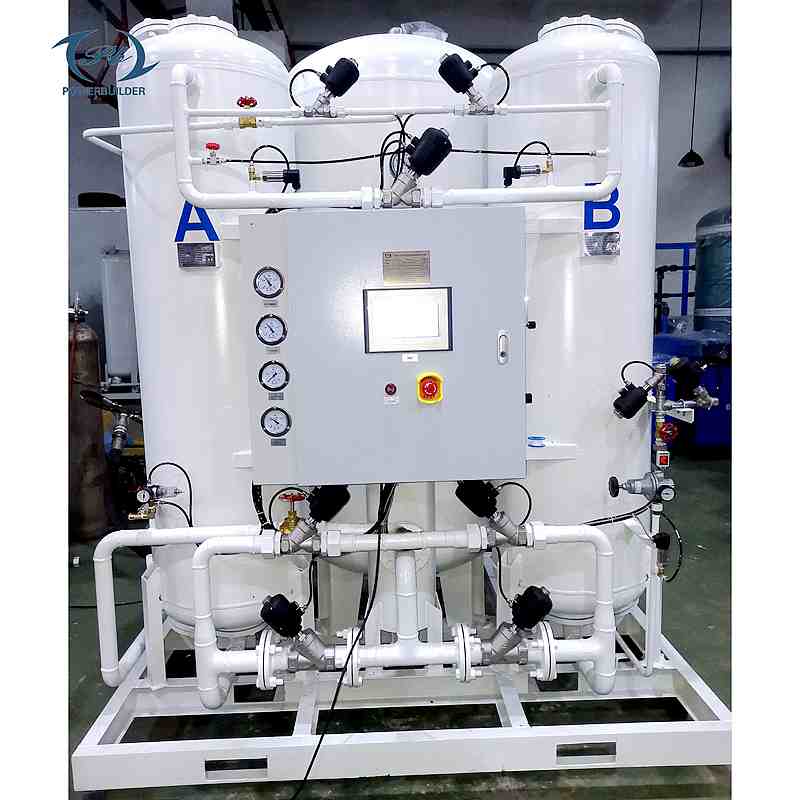

Description of 99.99% Purity 400Nm3/H PSA Nitrogen Generator Food, metallurgy, chemical

industry applicable



We have a rich experience of 15 years in manufacturing PSA nitrogen generators and oxygen generators at our factory. Each year, we supply approximately 400 sets of these generators to both domestic and international customers, encompassing production and debugging processes.

In collaboration with Burkert Valves, we have developed our own customized double-acting pneumatic valve. With the inclusion of top and middle pressure equalization design and airflow orifice plates, we continuously optimize and reduce the air consumption ratio of our equipment, resulting in significant energy savings. Our equipment boasts the highest energy consumption ratio in China. Additionally, our patented silencer effectively controls device noise, keeping it below 55 dB.



In terms of process flow, we have a comprehensive range of procedures and supporting equipment, including cutting, welding, assembly, molecular sieve filling, automatic rust removal, spraying, and complete commissioning procedures.



In our supply chain, we source first-line brands such as Atlas Copco, Ingersoll Rand, GDK, Liutech, Bolaite, Hanbell, and BK for air compressors. We also provide Boly, Atlas Copco, and Liutech refrigerated dryers, as well as Anshan Jiapeng and Anqing Bailian boosters. Our offerings extend to supporting equipment and accessories as well.



Presently, our company’s products cater to end-users and distributors worldwide. We offer customized remote systems, color customization, display interface customization, and various other OEM services. Moreover, we provide ASME standard equipment and pressure tanks compliant with the requirements of the USA and Australian markets.



For specific selection and inquiries, please reach out to our customer manager. We aspire to become your trusted long-term partner.

PN4400 PSA Nitrogen Plant Technical Specification
lot Item Description /Specification
1 Model/Place of Manufacture PN4400
2 Nitrogen making principle PSA Pressure swing adsorption PSA变压吸附(开放式结构)
3 Application Operation place Indoor
Environment Ambient temperature Min -5℃/Max 50℃/ design temperature37℃
Ambient humidity Min 40%RH Max90%RH
4 Capacity 400 Nm3/hr
5 Nitrogen Gas Purity ≥99.99 % Test at outlet of psa Nitrogen
6 Nitrogen Purity Sensor HT-TA261 1set
7 Nitrogen Flowmeter Japan SMC flowmeter 1 sets
8 Inlet compress air pressure 0.75 -0.99Mpa
9 Inlet Oil Content ≤0.001mg/m3
10 Residual dust ≤0.01um
11 Residual water ≤0.069mg/m3
12 Air inlet atmospheric dew point -15℃
13 Demand for clean compressed air 33.33 Nm3/min Recommend Air compressor 220Kw (33.5m3/min 10Bar ) or 200Kw(35.6m3/min 8Bar)
14 Inlet Diameter DN80
15 Outlet Diameter DN50
16 Maximum inlet temperature MAX 30 ℃
17 Allowable working pressure range Min7.5Kgf / cm2 Max9.9Kgf / cm2
18 Carbon molecular sieve model/origin CMS-240
19 The tower body pipe 2 sets
20 Air and nitrogen buffer tank Piped storage tank
21 Instrument Tank, silencer PB Silencer ≤55dB(A) patent number:ZL 2015 2 0545860.3
22 Solenoid valve brand/origin AirTAC 7 sets
23 Pneumatic valve brand/origin PB-Customized 11 Sets (two for auto drain unqalified Gas)

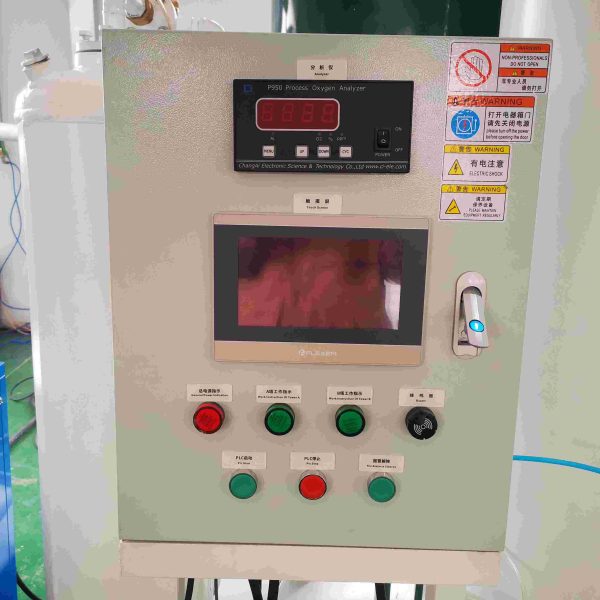

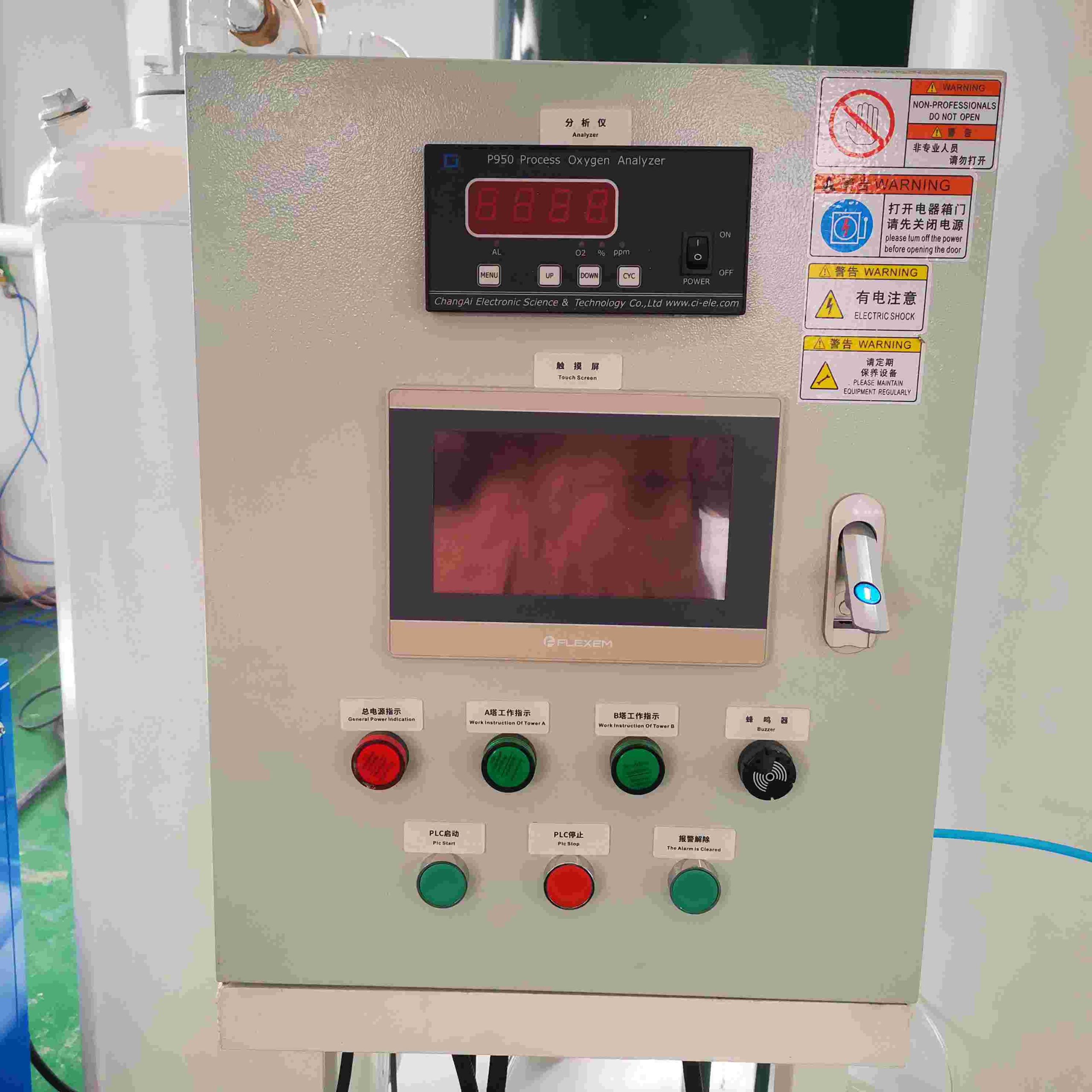

24 Control System Control Power Supply 0.2kw/set 220V 50 HZ
PLC Mitsubishi core integrated screen /or Siemens S7-200 Smart
electrical box built-in 1 set
touch screen Mitsubishi core integrated screen/ MCGS
25 size LxWxH (mm) / Weight:(Kg) About:3000*2000*3750mm 8500 kg
26 Price 含税含运费 交期20天

Working Principles for PSA Nitrogen Generator

Pressure swing adsorption(PSA)nitrogen generator is an automatic equipment that uses air as material,use carbon molecular sieve as adsorbent, pressure reduction desorption principle to adsorb oxygen from the air, thereby separating nitrogen.

Main Features for PSA Nitrogen Generator

  • Raw material air is taken from nature. Nitrogen can be produced by supplying compressed air and power.
  • Nitrogen purity can be adjusted conveniently and be produced by supplying compressed air
  • The equipment is highly automated, produces gas quickly, and can be unattended. Nitrogen can be produced within 10-15 minutes of startup.
  • The equipment process is simple, occupies a small area, consumes less energy and costs.
  • Molecular sieves are filled by snowstorm method to avoid the pulverization of molecular sieves caused by avoid the pulverization of molecular sieves caused by high-pressure airflow impact and ensure the long-term use of molecular sieves.
  • On-line inspection of imported analyzer with high access is simple, occupies a small area, consumes less energy,and costs

Carbon Molecular Sieve

High quality,high density, compact spring loaded, top/bottom balance, protected by a dedicated pressure sensor.
We usually use CMS-240 for purity below 99.99%
And use CMS-260 for purity of 99.999% in one step .

Standard Features

  • Siemens PLC
  • Customized and improved domestic valves
  • 7-inch LCD display
  • Taiwan AirTAC solenoid valve
  • Chengdu Jiuyin Nitrogen analyzer
  • SMC flowmeter
  • Professional brand molecular sieve

Optional Features

  • Remote control system
  • Better valve of brand Gemu, Burkert
  • Dew point analyzer
  • Import Molecular Sieve
  • Italian ODE solenoid valve

-Applications-

The application of Surface Mount Technology (SMT) industry spans across multiple sectors, offering numerous benefits:

  • Semiconductor Silicon Industry:

Ensures the protection and cleanliness of the atmosphere during semiconductor and integrated circuit manufacturing.
Facilitates the recovery of chemicals used in the manufacturing process.

  • Electronic Components Industry:

Utilizes nitrogen for selective welding, purging, and encapsulation, guaranteeing the production of high-quality electronic components.

  • Semiconductor Packaging Industry:

Employs nitrogen for packaging, reduction, and storage purposes, ensuring the integrity and longevity of semiconductor products.

  • Powder Metallurgy and Metal Processing Industry:

Utilizes nitrogen for heat treatment applications, such as annealing and carbonization of steel, iron, copper, and aluminum products.
Provides protective atmospheres in high-temperature furnaces and facilitates low-temperature assembly and plasma cutting of metal parts.

  • Chemical and Advanced Material Industry:

Creates oxygen-free atmospheres in chemical processes, enhancing safety and product quality.
Nitrogen is used for purging, filling storage tanks, gas displacement, leak detection, and as an inert medium for chemical reactions.
It finds applications in chemical fiber production, diesel hydrogenation, and catalytic reforming.

  • Oil and Gas Industry:

Nitrogen is employed in oil refining processes, container machine pipeline purging, leak detection, and enhanced oil recovery through nitrogen injection.

  • Food and Pharmaceutical Industry:

Nitrogen is crucial for food packaging, preservation, and storage, ensuring freshness and extending shelf life.
It is used in configurable sterilization filters for food drying and sterilization processes.
In the pharmaceutical sector, nitrogen is used for packaging, creating controlled atmospheres for drug delivery, and as a medical replacement gas.

These optimized applications of SMT industry contribute to enhanced productivity, improved product quality, and increased safety standards across these sectors.





Item No. Capacity Purity Size mm Inlet Diameter Outlet Diameteer Weight Kg Power
PN4005 5Nm3/H ≥99.99% 1200*850*1500 DN15 DN15 300 AC220V/0.2KW
PN4010 10Nm3/H ≥99.99% 1200*900*1900 DN15 DN15 500 AC220V/0.2Kw
PN4020 20Nm3/H ≥99.99% 1450*900*1900 DN25 DN15 600 AC220V/0.2Kw
PN4030 30Nm3/H ≥99.99% 1450*900*2250 DN32 DN15 700 AC220V/0.2Kw
PN4040 40Nm3/H ≥99.99% 1600*1100*1950 DN32 DN15 800 AC220V/0.2Kw
PN4050 50Nm3/H ≥99.99% 1700*1100*2200 DN40 DN15 1000 AC220V/0.2Kw
PN4060 60Nm3/H ≥99.99% 1800*1000*2300 DN40 DN25 1200 AC220V/0.2Kw
PN4070 70Nm3/H ≥99.99% 1800*1000*2300 DN40 DN25 1800 AC220V/0.2Kw
PN4080 80Nm3/H ≥99.99% 1800*1000*2300 DN40 DN25 1900 AC220V/0.2Kw
PN4100 100Nm3/H ≥99.99% 1800*1300*2450 DN40 DN25 2500 AC220V/0.2Kw
PN4120 120Nm3/H ≥99.99% 1800*1300*2450 DN40 DN25 2600 AC220V/0.2Kw
PN4150 150Nm3/H ≥99.99% 2000*1300*2450 DN40 DN25 2900 AC220V/0.2Kw
PN4200 200Nm3/H ≥99.99% 2200*1500*2650 DN50 DN40 3400 AC220V/0.2Kw
PN4250 250Nm3/H ≥99.99% 2500*1600*2680 DN50 DN40 3800 AC220V/0.2Kw
PN4300 300Nm3/H ≥99.99% 2500*1600*2900 DN50 DN40 5000 AC220V/0.2Kw
PN4350 350Nm3/H ≥99.99% 2500*1600*2900 DN80 DN50 5500 AC220V/0.2KW
PN4400 400Nm3/H ≥99.99% 3000*2000*3750 DN80 DN50 7500 AC220V/0.2Kw

Description

Technical indicators

  • Capacity Range : 2~2000Nm3/H
  • Purity Range : 95%~99.9999%
  • Outlet Pressure :0~6Bar or 0~ 8Bar
  • Booster outlet pressure range : 10 to 200Bar
  • Service Life 8-10 years as long as regular maintenance
