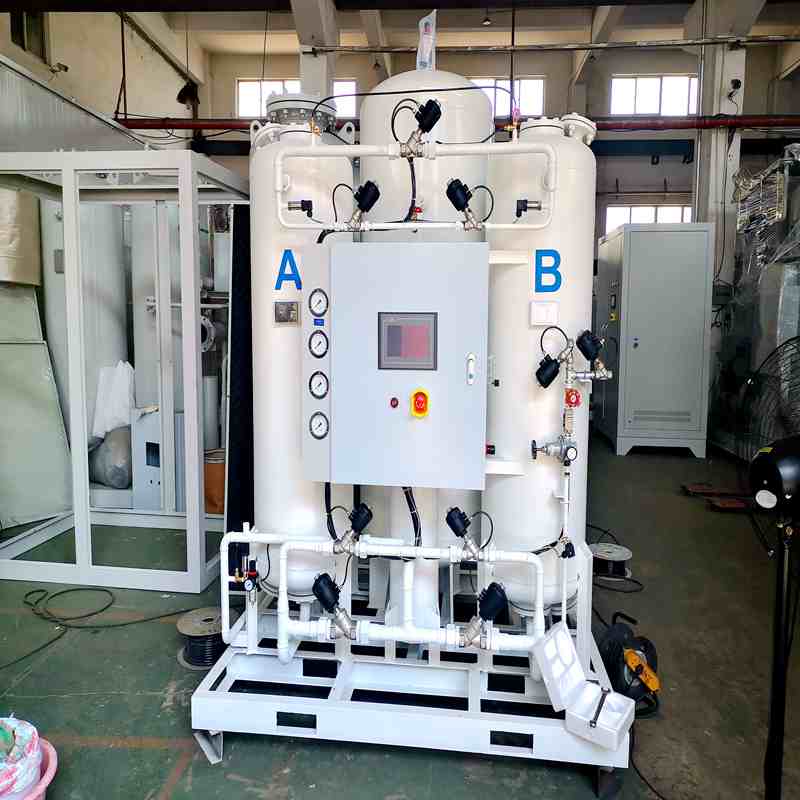

PN4500 PSA Nitrogen Plant Technical Specification | ||||||
lot | Item | Description /Specification | ||||
1 | Model/Place of Manufacture | PN4500 | ||||
2 | Nitrogen making principle | PSA Pressure swing adsorption PSA变压吸附(开放式结构) | ||||
3 | Application | Operation place | Indoor | |||
Environment | Ambient temperature | Min -5℃/Max 50℃/ design temperature37℃ | ||||
Ambient humidity | Min 40%RH Max90%RH | |||||
4 | Capacity | 500 | Nm3/hr | |||
5 | Nitrogen Gas Purity | ≥99.99 % Test at outlet of psa Nitrogen | ||||
6 | Nitrogen Purity Sensor | HT-TA261 1set | ||||
7 | Nitrogen Flowmeter | Japan SMC flowmeter 1 sets | ||||
8 | Inlet compress air pressure | 0.75 -0.99Mpa | ||||
9 | Inlet Oil Content | ≤0.001mg/m3 | ||||
10 | Residual dust | ≤0.01um | ||||
11 | Residual water | ≤0.069mg/m3 | ||||
12 | Air inlet atmospheric dew point | -15℃ | ||||
13 | Demand for clean compressed air | 41.67 | Nm3/min | Recommend Air compressor | 280Kw (42.6m3/min 10Bar ) or 250Kw (42.6m3/min 8Bar) | |
14 | Inlet Diameter | DN80 | ||||
15 | Outlet Diameter | DN65 | ||||
16 | Maximum inlet temperature | MAX 30 ℃ | ||||
17 | Allowable working pressure range | Min7.5Kgf / cm2 Max9.9Kgf / cm2 | ||||
18 | Carbon molecular sieve model/origin | CMS-240 | ||||
19 | The tower body pipe | 2 sets | ||||
20 | Air and nitrogen buffer tank | Piped storage tank | ||||
21 | Instrument Tank, silencer | PB Silencer ≤55dB(A) patent number:ZL 2015 2 0545860.3 | ||||
22 | Solenoid valve brand/origin | AirTAC | 7 sets | |||
23 | Pneumatic valve brand/origin | PB-Customized | 11 Sets (two for auto drain unqalified Gas) | |||
24 | Control System | Control Power Supply | 0.2kw/set 220V 50 HZ | |||
PLC | Mitsubishi core integrated screen /or Siemens S7-200 Smart | |||||
electrical box | built-in | 1 set | ||||
touch screen | Mitsubishi core integrated screen/ MCGS | |||||
25 | size LxWxH (mm) / Weight:(Kg) | About:3000*2000*3750mm 8500 kg | ||||
26 | Price | 含税含运费 交期20天 |

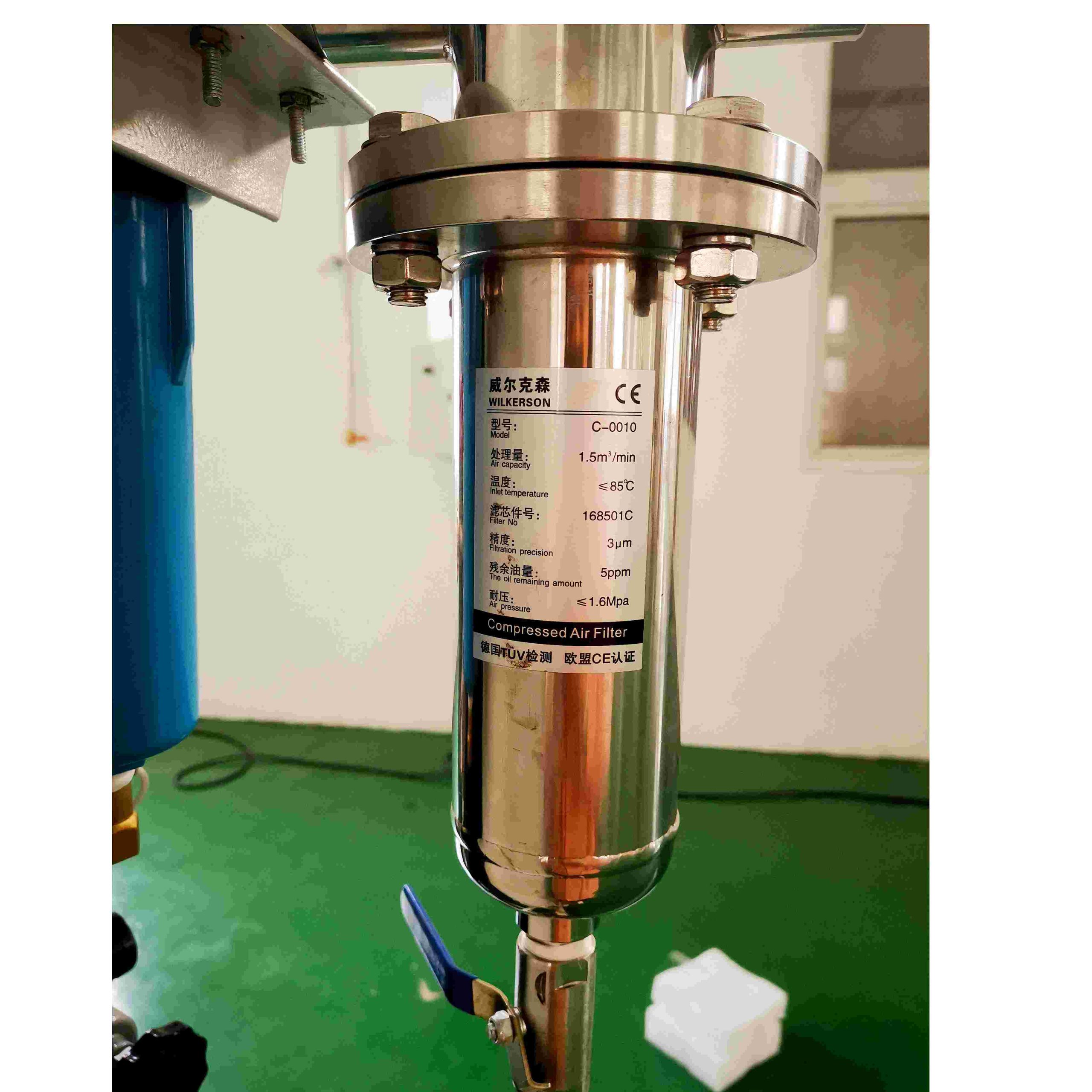

Working Principles for PSA Nitrogen Generator
A Pressure Swing Adsorption (PSA) nitrogen generator is an automated system that utilizes air as its raw material. By employing carbon molecular sieve as the adsorbent, it applies the principle of pressure reduction desorption to selectively adsorb oxygen from the air, resulting in the separation of nitrogen.
Main Features for PSA Nitrogen Generator
- The production of nitrogen involves utilizing ambient air as the raw material, which is readily available in nature. By supplying compressed air and power, nitrogen can be efficiently generated. The purity of nitrogen can be conveniently adjusted according to specific requirements by controlling the input of compressed air.
- The equipment used for nitrogen generation is highly automated, allowing for rapid gas production without the need for continuous monitoring. It can operate unattended and starts producing nitrogen within a short timeframe of 10-15 minutes after startup.
- The equipment itself is designed with simplicity in mind, occupying a small footprint, consuming minimal energy, and offering cost savings. Its streamlined process flow contributes to its compact size and energy efficiency.
- To ensure the durability and long-term use of the molecular sieves, they are filled using the snowstorm method. This technique prevents the pulverization of the molecular sieves caused by the impact of high-pressure airflow, safeguarding their performance and extending their lifespan.
- Regarding the online inspection of imported analyzers, they are characterized by their simplicity, high accessibility, small physical footprint, low energy consumption, and cost-effectiveness.
Technical indicators
- Capacity Range : 2~2000Nm3/H
- Purity Range : 95%~99.9999%
- Outlet Pressure :0~6Bar or 0~ 8Bar
- Booster outlet pressure range : 10 to 200Bar
- Service Life 8-10 years as long as regular maintenance
Carbon Molecular Sieve
High quality,high density, compact spring loaded, top/bottom balance, protected by a dedicated pressure sensor.
We usually use CMS-240 for purity below 99.99%
And use CMS-260 for purity of 99.999% in one step .
Standard Features
- Siemens PLC
- Customized and improved domestic valves
- 7-inch LCD display
- Taiwan AirTAC solenoid valve
- Chengdu Jiuyin Nitrogen analyzer
- SMC flowmeter
- Professional brand molecular sieve
Optional Features
- Remote control system
- Better valve of brand Gemu, Burkert
- Dew point analyzer
- Import Molecular Sieve
- Italian ODE solenoid valve
-Applications-
- Semiconductor Silicon Industry:
Protection and cleaning of the atmosphere during semiconductor and integrated circuit manufacturing processes.
Recovery of chemicals used in the manufacturing process.
- Electronic Components Industry:
Nitrogen is used for selective welding, purging, and encapsulation, ensuring the production of high-quality electronic components.
- Semiconductor Packaging Industry:
Nitrogen is employed for packaging, reduction, and storage purposes.
- Powder Metallurgy and Metal Processing Industry:
Nitrogen is used for heat treatment processes like annealing and carbonization of steel, iron, copper, and aluminum products.
It provides furnace protection during high-temperature operations and is also utilized in low-temperature assembly and plasma cutting of metal parts.
- Chemical Industry and Advanced Material Industry:
Nitrogen creates an oxygen-free atmosphere in chemical processes, enhancing production safety.
It is used for purging pipes and vessels, filling nitrogen storage tanks, gas displacement, leak detection, combustible gas protection, agitation of chemical reactions, and chemical fiber production.
Nitrogen is also applied in diesel hydrogenation and catalytic reforming processes.
- Oil and Gas Industry:
Nitrogen is used in oil refining processes, container machine pipeline nitrogen-filled purging, box leak detection, and nitrogen injection for oil recovery.
- Food and Medicine Industry:
Nitrogen plays a vital role in food packaging, preservation, and storage.
It can be used in food drying and sterilization with configurable sterilization filters.
In the medical field, nitrogen is used for medicine packaging, medical replacement gas, and creating a controlled atmosphere for medicine delivery.
By optimizing the application of the SMT industry in these sectors, it leads to improved efficiency, quality, and safety in various manufacturing and production processes.
