| PN4040 PSA Nitrogen Plant Technical Specification | ||||||
| lot | Item | Description /Specification | ||||
| 1 | Model/Place of Manufacture | PN4040 | ||||
| 2 | Nitrogen making principle | PSA Pressure swing adsorption PSA变压吸附(开放式结构) | ||||
| 3 | Application | Operation place | Indoor | |||
| Environment | Ambient temperature | Min -5℃/Max 50℃/ design temperature37℃ | ||||
| Ambient humidity | Min 40%RH Max90%RH | |||||
| 4 | Capacity | 40 | Nm3/hr | |||
| 5 | Nitrogen Gas Purity | ≥99.99 % Test at outlet of psa Nitrogen | ||||
| 6 | Nitrogen Purity Sensor | HT-TA261 1set | ||||
| 7 | Nitrogen Flowmeter | Japan SMC flowmeter 1 sets | ||||
| 8 | Inlet compress air pressure | 0.75 -0.99Mpa | ||||
| 9 | Inlet Oil Content | ≤0.001mg/m3 | ||||
| 10 | Residual dust | ≤0.01um | ||||
| 11 | Residual water | ≤0.069mg/m3 | ||||
| 12 | Air inlet atmospheric dew point | -15℃ | ||||
| 13 | Demand for clean compressed air | 3.33 | Nm3/min | Recommend Air compressor | 30Kw (4.3 m3/min 10Bar ) or 22Kw (3.7m3/min 8Bar) | |
| 14 | Inlet Diameter | DN32 | ||||
| 15 | Outlet Diameter | DN15 | ||||
| 16 | Maximum inlet temperature | MAX 30 ℃ | ||||
| 17 | Allowable working pressure range | Min7.5Kgf / cm2 Max9.9Kgf / cm2 | ||||
| 18 | Carbon molecular sieve model/origin | CMS-240 | ||||
| 19 | The tower body pipe | 2 sets | ||||
| 20 | Air and nitrogen buffer tank | Piped storage tank | ||||
| 21 | Instrument Tank, silencer | PB Silencer ≤55dB(A) patent number:ZL 2015 2 0545860.3 | ||||
| 22 | Solenoid valve brand/origin | AirTAC | 7 sets | |||
| 23 | Pneumatic valve brand/origin | PB-Customized | 11 Sets (two for auto drain unqalified Gas) | |||
| 24 | Control System | Control Power Supply | 0.2kw/set 220V 50 HZ | |||
| PLC | Mitsubishi core integrated screen /or Siemens S7-200 Smart | |||||
| electrical box | built-in | 1 set | ||||
| touch screen | Mitsubishi core integrated screen/ MCGS | |||||
| 25 | size LxWxH (mm) / Weight:(Kg) | About:1600*1100*1950mm 800 kg | ||||
| 26 | Price | 含税含运费 交期20天 | ||||

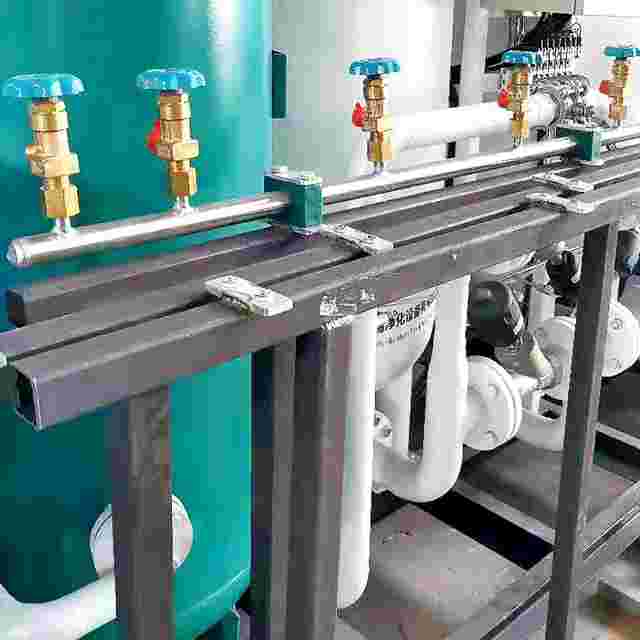

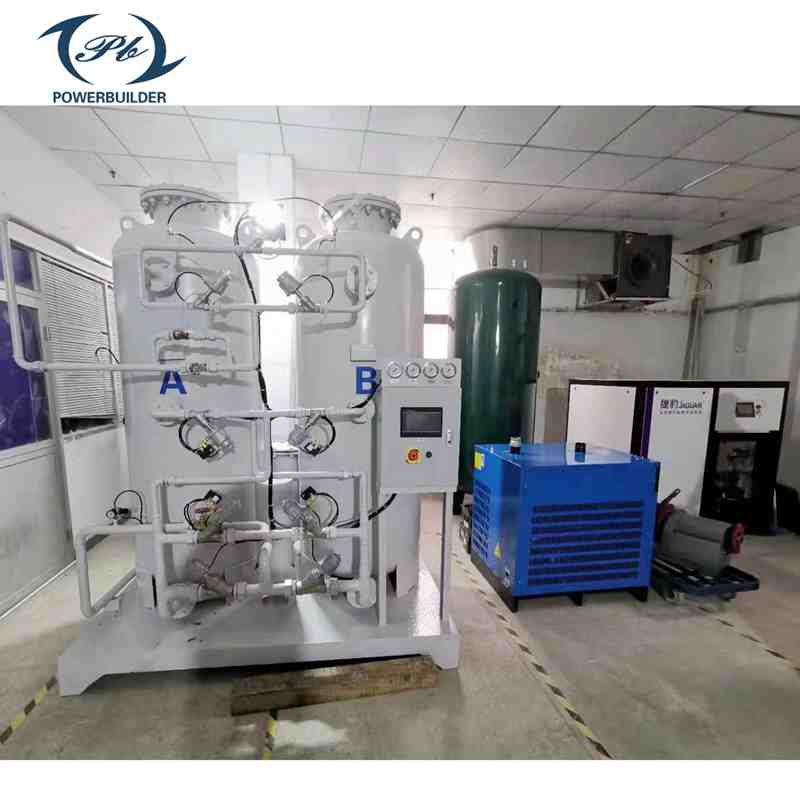

Working Principles for PSA Nitrogen Generator
A Pressure Swing Adsorption (PSA) nitrogen generator is an automated system designed to produce nitrogen gas by selectively separating oxygen from air using a carbon molecular sieve as the adsorbent.
The process begins with compressing air and directing it into a vessel containing the carbon molecular sieve. As the air passes through the sieve bed, the oxygen molecules are adsorbed onto the surface of the sieve material, allowing the nitrogen to pass through and exit the system.
After a certain period, the adsorbent becomes saturated with oxygen and needs to be regenerated. This is achieved by reducing the pressure in the vessel, causing the adsorbed oxygen to be released. The regenerated adsorbent can then be used again for the next cycle of nitrogen production.
PSA nitrogen generators offer a reliable and efficient solution for on-site nitrogen generation. They are widely used in various industries where a consistent and high-purity nitrogen supply is required, such as chemical manufacturing, food and beverage processing, electronics, and pharmaceutical production.
Main Features for PSA Nitrogen Generator
- Raw material air is taken from nature. Nitrogen can be produced by supplying compressed air and power.
- Nitrogen purity can be adjusted conveniently and be produced by supplying compressed air
- The equipment is highly automated, produces gas quickly, and can be unattended. Nitrogen can be produced within 10-15 minutes of startup.
- The equipment process is simple, occupies a small area, consumes less energy and costs.
- Molecular sieves are filled by snowstorm method to avoid the pulverization of molecular sieves caused by avoid the pulverization of molecular sieves caused by high-pressure airflow impact and ensure the long-term use of molecular sieves.
- On-line inspection of imported analyzer with high access is simple, occupies a small area, consumes less energy,and costs.
Carbon Molecular Sieve
High quality,high density, compact spring loaded, top/bottom balance, protected by a dedicated pressure sensor.
We usually use CMS-240 for purity below 99.99%
And use CMS-260 for purity of 99.999% in one step .
Standard Features
- Siemens PLC
- Customized and improved domestic valves
- 7-inch LCD display
- Taiwan AirTAC solenoid valve
- Chengdu Jiuyin Nitrogen analyzer
- SMC flowmeter
- Professional brand molecular sieve
Optional Features
- Remote control system
- Better valve of brand Gemu, Burkert
- Dew point analyzer
- Import Molecular Sieve
- Italian ODE solenoid valve
-Applications-
- Application of SMT industry
- Semiconductor silicon industry application
Semiconductor and integrated circuit manufacturing process atmosphere protection, cleaning,chemical recovery,etc.
- Electronic components industry application
Selective welding, puring and encapsulation with nitrogen. Scientific nitrogen inert protection has proven to be an essential step in the successful production of high quality electronic components.
- Semiconductor packing industy application
Packaging, reduction, strage with nitrogen.
- Powder metallurgy, metal processing industry
Heat treatment industry application, Steel, iron, copper, aluminum products annealing, carbonization, high temperature furnace protection, Low temperature assembly and plasma cutting of metal parts.
- In the chemical industry and advanced material industry
nitrogen finds extensive applications. It is utilized to create an oxygen-free atmosphere during chemical processes, enhancing the safety and efficiency of production. Additionally, nitrogen serves as a power source for fluid transmission.
Specifically, nitrogen is employed for various purposes, including purging pipes and vessels in systems, filling nitrogen storage tanks, gas displacement, leak detection, providing protection against combustible gases, facilitating chemical reaction agitation, safeguarding chemical fiber production, as well as supporting processes such as diesel hydrogenation and catalytic reforming. These diverse applications highlight the versatility and importance of nitrogen in the chemical industry and advanced material manufacturing.
- Oil and gas industry
Oil refining, container machine pipeline nitrogen-filled purge box leak detection, nitrogen injection oil recovery.
- Food and medicine industry Application
Mianly used in food packaging, food preservation, food storage, (Configurable sterilization filter), food drying and sterilization, medicine packing, medical replacement gas, medicine delivery atmosphere, etc.
