Overview

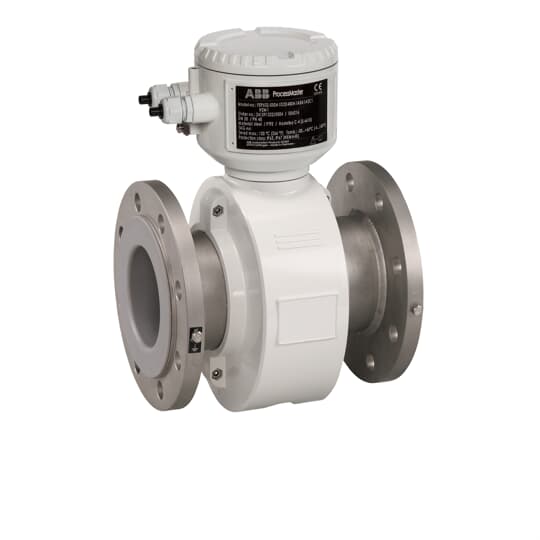

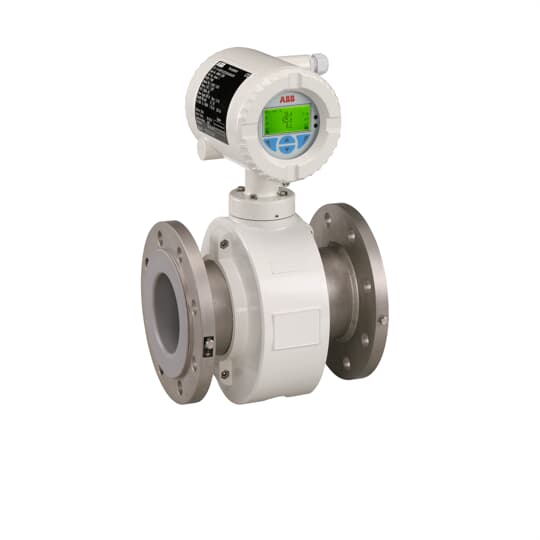

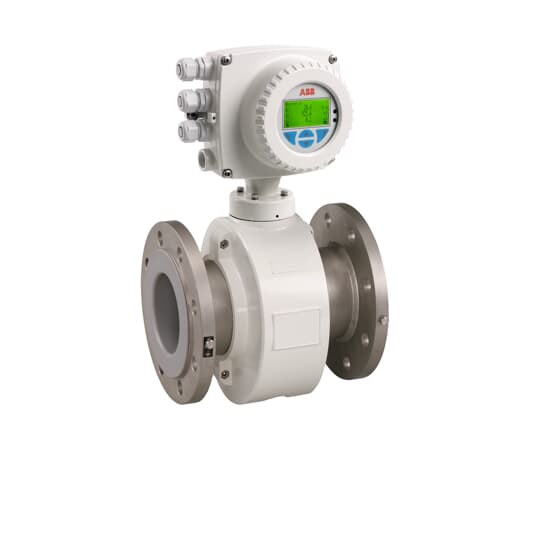

ProcessMaster FEP630 – The first choice for all industrial applications.
Advanced features and functionality that enable you to operate more efficiently, reduce costs and increase profitably.
- Real-time diagnostic keep your process up and running
– Detecting critical process conditions at an early stage reduce unscheduled downtime and maintenance
– Clear text messages simplify troubleshooting - In-built noise/grounding check
– Verify the installation is correct from day one
– Checks for proper grounding which is fundamental to an accurate flow measurement - In-built verification for highest confidence in your flow measurement
– Checking for sensor and transmitter integrity
– No need to remove the flowmeter from the process - Simplicity of operation
– Automatic self-configuration sequence
– Incredibly easy to work with - Ethernet IP communication
– For remote access to built-in diagnostic monitoring the flowmeter and your process
– Flowmeter verification and configuration over Ethernet minimizing commissioning time
– Built-in webserver, no additional software required for flowmeter configuration
Data
General specifications:
- Measuring value error
– Standard 0.4 % of rate, option for 0.3% and 0.2 % of rate - Nominal diameter
– DN 3 to 2000 (1/10 to 80 in.) - Process connection
– Flange in accordance with DIN 2501 / EN 1092-1, ASME B16.5 / B16.47, JIS, AS2129 - Nominal pressure
– PN 10 to 100,
– ASME CL 150, 300 - Lining
– Hard rubber, soft rubber, PTFE, PFA, ETFE, Linatex - IP rating
– IP67 or IP68 - Fluid temperature
– Up to 180 °C (356 °F) - Communication
– HART
– PROFIBUS DP
– Modbus
– Ethernet- Ethernet IP
- Modbus TCP
- Webserver
- Ex approvals
– ATEX, IECEx, FM, cFM - Process diagnostics
– Empty pipe, partially filling, gas bubbles, electrode impedance, conductivity, sensor temperature
