Product Performance
Input Voltage:
Single phase 185V-250V Three phase 320V-430V
Efficiency: >90%
Waveform distortion: ≤ 5%
Response time: 20ms-100ms
Spike Absorption: Input 500v/13us Output ≤5v
Ambient temperature: -10° C~+40°C
Temperature rise: <60°C
Electrical strength: 1500v/min
Insulation resistance: >100MΩ
Output Voltage:
Single-phase 220 precision 1% Three-phase 220 precision 1%
Frequency: 50Hz±2Hz
Over-voltage protection value: single-phase 240 +4V three-phase 426V ± 7V
Load effect: ≤±0.5%
| (kva) Specification ModeI |
External Dimens ion | (kg) Weight |
|

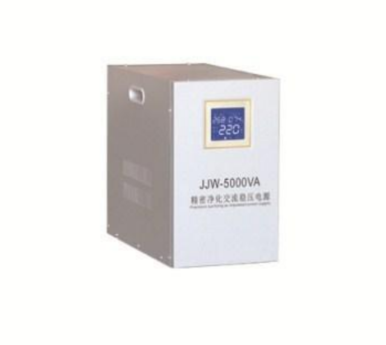

| JJW | JJW-1 | 360*170*280 | 13 |
| JJW-2 | 390*180*330 | 21 | |
| JJW-3 | 440*200*350 | 25 | |
| JJW-5 | 470*240*450 | 35 | |
| JJW-10 | 510*250*49 | 54 | |
| JJW-15 | 440*360*710 | 66 | |

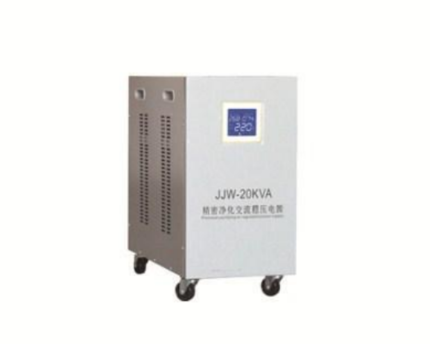

| JJW-20 | 440*360*790 | 80 | |
| JJW-30 | 440*360*790 | 110 | |
| JSW | JSW-3 | 530*340*765 | 40 |

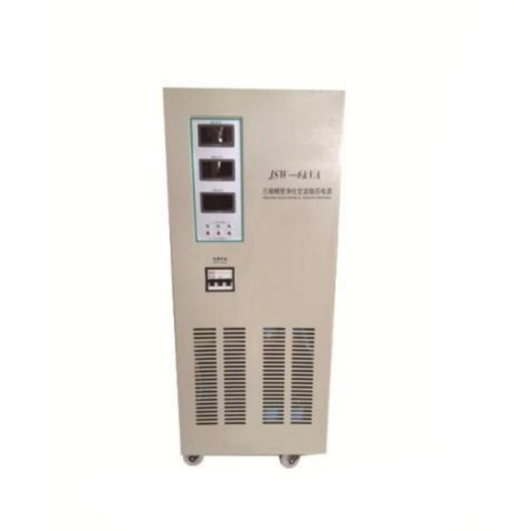

| JSW-6 | 530*340*765 | 52 | |
| JSW-9 | 580*350*870 | 91 | |
| JSW-15 | 580*390*900 | 116 | |
| JSW-2 | 580*390*900 | 127 | |
| JSW-30 | 720*430*1150 | 140 | |
| JSW-45 | 720*430*1150 | 160 | |
| JSW-5 | 720*660*1140 | 170 | |
| JSW-60 | 720*660*1140 | 190 | |
| JSW-75 | 700*690*1160 | 240 |
