Overview

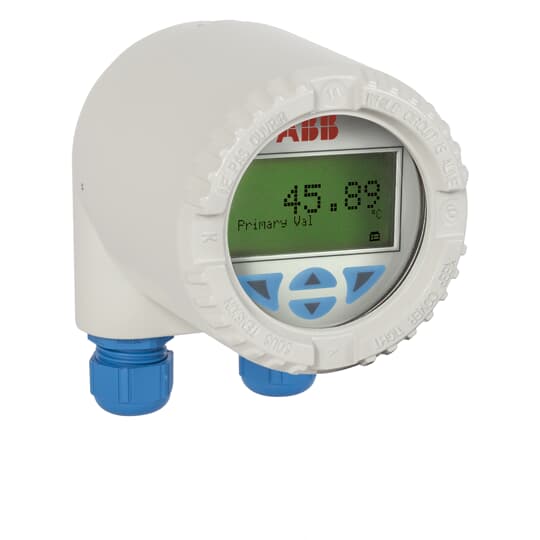

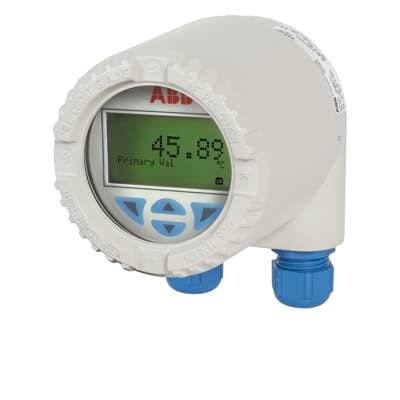

The field-mount temperature transmitter can be configured via FDT / DTM in DAT200 (Asset Vision Basic) or any standard FTD tool via EDD or local HMI (optional). The Field Information Manager (FIM) is also supported via FDI technology. For PROFIBUS the configuration is possible via GST-file, EDD or DTM and for FOUNDATION Fieldbus via EDD.
Data
- Two universal sensor inputs, each for RTD, thermocouple, Ω, mV
- Functional safety SIL 2 / SIL 3 in accordance with IEC 61508 (HART variant)
- Various sensor error-calibration possibilities
– One point, two point, Callendar-van-Dusen, freestyle characteristics with 32 supporting points - Sensor backup / automatic sensor redundancy switching (2 x Pt100 3-wire connection)
- Output signal
– 4 to 20 mA, HART
– PROFIBUS PA 3.01
– FOUNDATION Fieldbus ITK 5.x - Accuracy 0.1 %, long-term stability 0.05 % per year
- Wire break / corrosion monitoring in accordance with NE 89
- Extended diagnostics in accordance with NE 107
- IP 66 / IP 67, NEMA 4X aluminum or stainless steel field-mount housing
- Large, user-friendly LCD indicator Type B with TTF300 configuration option
- Approvals for explosion protection
– ATEX, IECEx, zone 0
– FM / CSA
– GOST
