| Transformer Model |

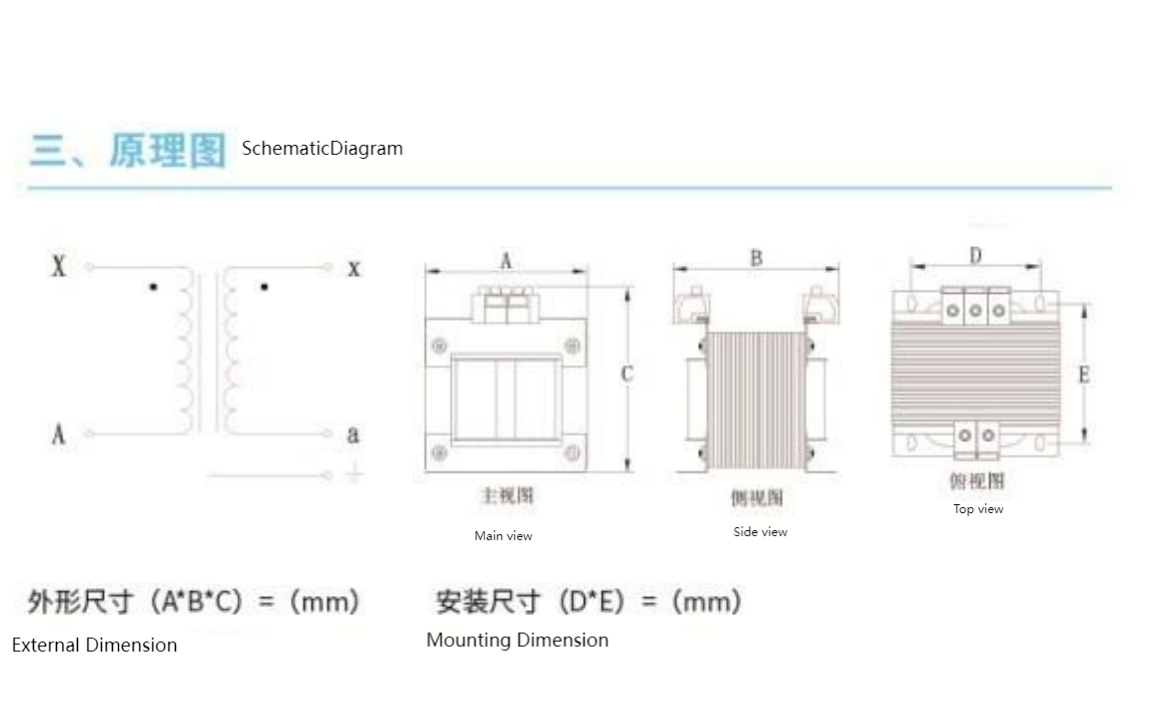

External Dimension (Small Terminal) |
(mm) Mounting Dimensions |
External Dimension (Copper Screws) |
Mounting Dimensions |
Weights |
| BK-250VA | 114*120*140 | 90*87 | 114*152*145 | 95*92 | 5 |
| BK-300VA | 114*130*140 | 90*95 | 114*160*145 | 95*100 | 5.5 |
| BK-400VA | 132*135*150 | 100*95 | 132*180*165 | 110*95 | 7 |
| BK-500VA | 132*150*150 | 100*105 | 132*190*165 | 110*105 | 8 |
| BK-600VA | 150*140*180 | 120*95 | 150*180190 | 125*90 | 8.5 |
| BK-700VA | 150*150*180 | 120*105 | 150*190*190 | 125*100 | 9.5 |
| BK-800VA | 150*160*180 | 120*115 | 150*200*190 | 125*110 | 11 |

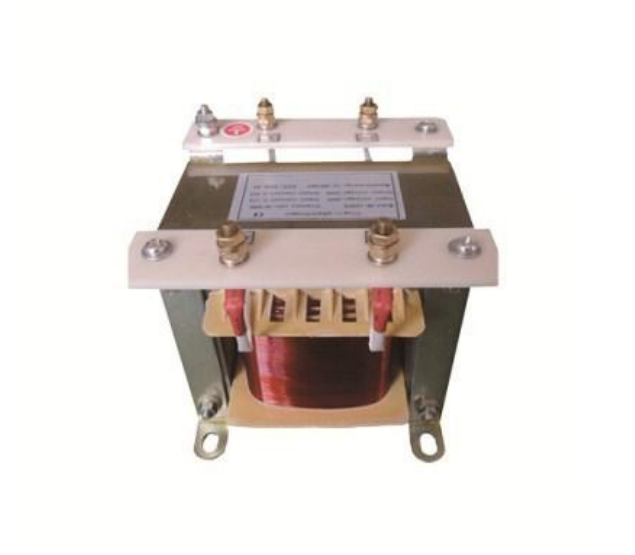

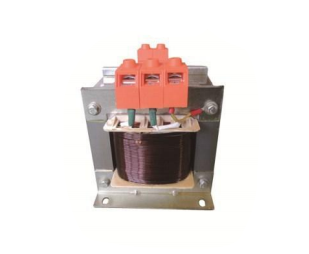

BKLBKDBKDK Product Series Transformer
BK, DBK and other high-quality series control transformer is in the domestic BK, LLBK, ITBK and other series of control transformers on the basis of the further absorption of the advantages of domestic and foreign over the years.
Advantages of similar products, the use of advanced technology and rigorous design for manufacturing, and preferential selection of advanced foreign methods of terminals, with excellent performance, reliable, low energy consumption, small size, wiring, and so on.
Low energy consumption, small volume, wiring safety, wide applicability and other characteristics, is an ideal power supply, BK, LLBK, LTBK series control transformers, suitable for 50-60HZ, rated voltage, rated voltage, rated voltage, rated voltage, rated voltage, rated voltage, rated voltage, rated voltage, rated voltage, rated voltage, rated voltage, rated voltage, rated voltage
BK, LLBK, LTBK series control transformers, suitable for 50-60HZ, rated voltage of not more than 1000V AC circuit, as machine tools and mechanical equipment control power supply, lighting and signal lamps power supply; can also be used as a small
It can also be used as a small power supply.
