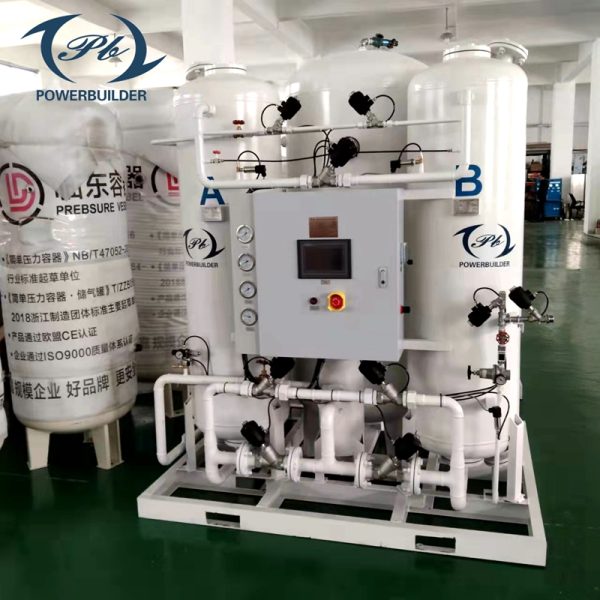

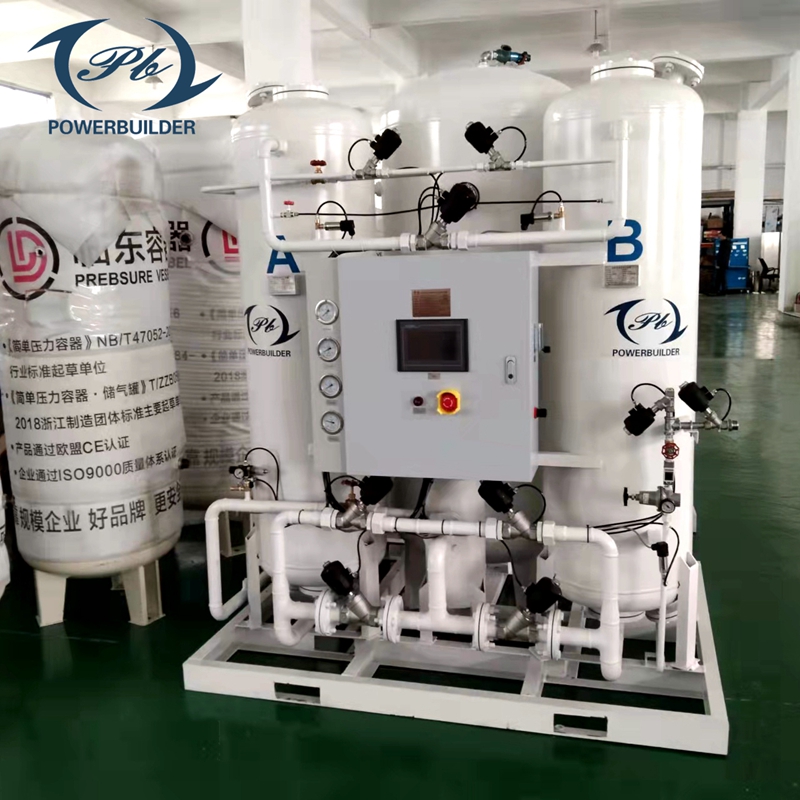

| PB-40 PSA Oxygen Plant Technical Specification | ||||||
| lot | Item | Description /Specification | ||||
| 1 | Model/Place of Manufacture | PB-40 | China | |||
| 2 | Oxygen making principle | PSA Pressure swing adsorption PSA变压吸附(开放式结构) | ||||
| 3 | Application | Operation place | Indoor | |||
| Environment | Ambient temperature | Min -5℃/Max 50℃/ design temperature37℃ | ||||
| Ambient humidity | Min 40%RH Max90%RH | |||||
| 4 | Capacity | 40 | Nm3/hr | |||
| 5 | Oxygen Gas Purity | 93% ±3% Test at outlet of psa oxygen generator | ||||
| 6 | Oxygen Purity Sensor | HT-TA530 1set | ||||
| 7 | Oxygen Flowmeter | Japan SMC flowmeter 1 sets | ||||
| 8 | Inlet compress air pressure | 0.55~0.7 Mpa | ||||
| 9 | Inlet Oil Content | ≤0.001mg/m3 | ||||
| Residual dust | ≤0.01um | |||||
| Residual water | ≤0.069mg/m3 | |||||
| 10 | Air inlet atmospheric dew point | -15℃ | ||||
| 11 | Demand for clean compressed air | 8.0 m³/min | Recommend Air compressor | 45Kw 8.0 m³/min 8Bar | ||
| 12 | Inlet Diameter | DN40 | ||||
| 13 | Outlet Diameter | DN25 | ||||
| 14 | Maximum inlet temperature | MAX 30 ℃ | ||||
| 15 | Allowable working pressure range | Min7.5Kgf / cm2 Max9.9Kgf / cm2 | ||||
| 16 | Carbon molecular sieve model/origin | JLOX-500 | ||||
| 17 | The tower body pipe | 2 sets | ||||
| 18 | Air and Oxygen buffer tank | Piped storage tank | ||||
| 19 | Instrument Tank, silencer | PB Silencer ≤55dB(A) | ||||
| 20 | Solenoid valve brand/origin | AirTAC | 9 sets | |||
| 21 | Pneumatic valve brand/origin | Powerbuilder | 9 Sets+2 Sets | |||

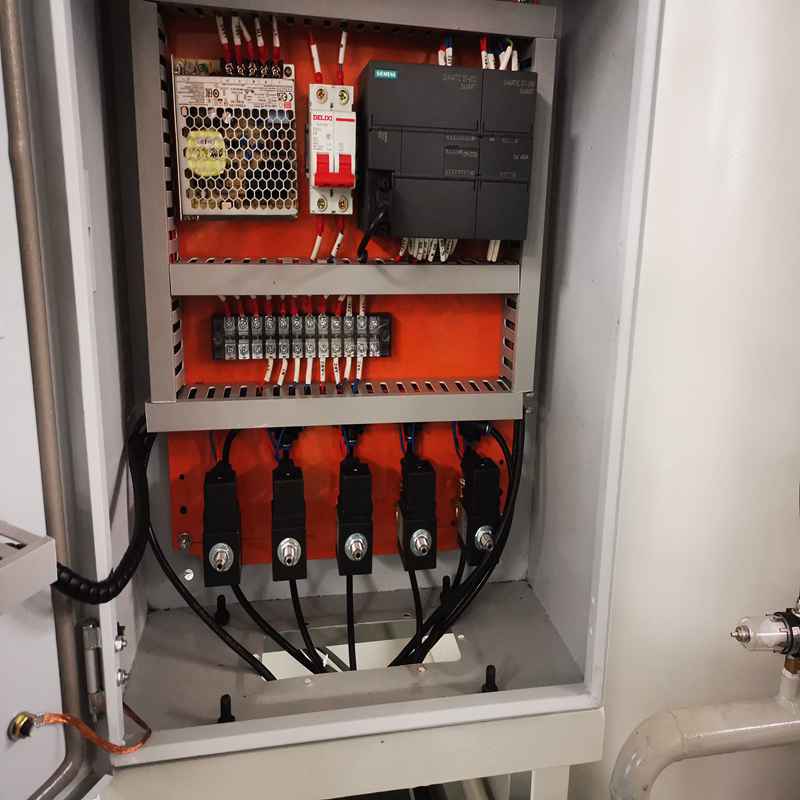

| 22 | Control System | Control Power Supply | 0.2kw/set 220V 50 HZ | |||
| PLC | Siemens PL Smart S7-200 or Mitsubishi integrated PLC | |||||
| Electrical box | built-in | 1 set | ||||
| Touch screen | MCGS 7 inch or Mitsubishi integrated PLC with screen | |||||
| 23 | size LxWxH (mm) / Weight:(Kg) | About:2000*1400*2450// 1700kg | ||||
Working Principles for PSA Oxygen Generator
- Air contains 21% Oxygen, 78% Nitrogen, 0.9% Argon and 0.1% other trace gases. Oxygen plant separates this oxygen from Compressed Air through a unique process called Pressure Swing Adsorption. (PSA).
- The Pressure Swing Adsorption process for the generation of enriched oxygen gas from ambient air utilizes the ability of a synthetic Zeolite Molecular Sieve to absorb mainly nitrogen. While nitrogen concentrates in the pore system of the Zeolite, Oxygen Gas is produced as a product.
- Oxygen generation plant’s use two vessels filled with Zeolite Molecular sieve as adsorbers. As Compressed Air passes up through one of the adsorbers, the molecular sieve selectively adsorbs the Nitrogen. This then allows the remaining Oxygen to pass on up through the adsorber and exit as a product gas. When the adsorber becomes saturated with Nitrogen the inlet airflow is switched to the second adsorber. The first adsorber is regenerated by desorbing nitrogen through depressurization and purging it with some of the product oxygen. The cycle is then repeated and the pressure is continually swinging between a higher level at adsorption (Production) and a lower level at desorption (Regeneration).
-Standard Features –
- Control system with SIEMENS touch operated panel
- Automatic start/stop
- Built in purity analyzer for continues monitoring
- Reliable- built for uninterrupted operation
- Designed for dynamic pressure loading
- Robust design, piping from Stainless Steel
-Optional Features-
- Molecular sieve moisture protection
- GSM modem (remote start/stop, status SMS, alarm warning SMS)
- Flow meter with totalize
- Oxygen dew point sensor
- Temperature sensor
- Purity and pressure control
- Audio/visual alarm
- Modbus TCP/IP connection
- Remote control system
- Data-logging (saved on memory card)
-Applications-
- Aquaculture
- Feed Gas for Ozone Generators
- Glass blowing
- Leaching
- NOx Reduction for Fuel Burners
- Oxygen Lancing
- Welding, Brazing
- Wellness
